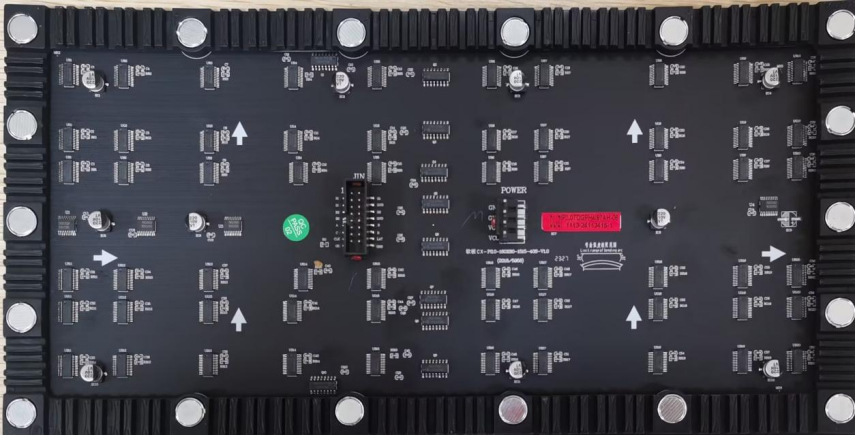

Wave-Shaped Flexible LED Module Bendable

Name: Wave-Shaped Flexible LED Module Bendable
Availability: InStock

Key Applications:

It is widely used in Curved and Wave-Shaped Video Walls,Immersive Environments (Caves, Tunnels, and Domes),Architectural Integration and Column Wraps,Creative and Artistic Installations,Retail & Showroom Enhancements,Broadcast and Virtual Production Studios.

Product Parameters

Brand :
Hoozoe
Model :
SMD Indoor Full Color Flexible Modules
Order(MOQ) :
80 pcs
Payment :
TT
Product Origin :
Zhangzhou Fujian
Color :
Full Color
Shipping Port :
Xiamen
Lead Time :
7-15 days

Inquiry now

Pixel Pitch (mm) : P1.25、P1.53、P1.86、P2.0、P2.5、P3.076、P4

Parameter	Indoor Full color Flexible Module
Item	P1.25	P1.53	P1.86	P2	P2.5	P2.5	P3.076	P4	P4
Module size(mm)	320X160	320X160	320X160	320x160	320x160	320x160	320X160	320X160	256x128
Pixel Pitch(mm)	1.25	1.53	1.86	2.00	2.50	2.50	3.076	4.00	4.00
Dots	256x128	208x104	172x86	160x80	128x64	128x64	104X52	64X32	64X32
SMD	SMD1010	SMD1212	SMD1515	SMD1515	SMD2121	SMD2121	SMD2121	SMD2020	SMD2121
Scan	1/64	1/52	1/43	1/40	1/32	1/64	1/26	1/20	1/16
Pixel Density(Dots/㎡)	640000	432640	288926	250000	160000	160000	108160	62500	62500
Brightness(cd/㎡)	1000	800	600	600	500	500	500	400	500
Weight(g)	300±5	256±5	256±5	256±5	230±5	230±5	230±5	200±5	163±5
Color temperture(k)	3000-15960Adjustable
Refresh Rate(Hz)	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz/1920Hz	3840Hz	1920Hz	1920Hz	3840Hz/1920Hz
Warranty	1 year

Hoozoe Advantages

LED Lamps

We use High-Quality Nationstar/Kinglight/DSBJ lamp beads from LED Lamps Factory directly which have high color contrast and best color uniformity so as to meet the need for high grayscale and keeping natural color.

IC Driver

To achieve the best visual performance of indoor LED display panel, we use the best Driving IC, such as Silan 9931 with high refresh rate and high grey level with the latest technologies.

72+ Hours Aging Tests

72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability the indoor LED display modules and ensure the LED modules without broken lamps

Various Pixel Pitch Avaliable

COB LED display Panel has all pixel available from P1.25、P1.53、P1.56、P1.86 .

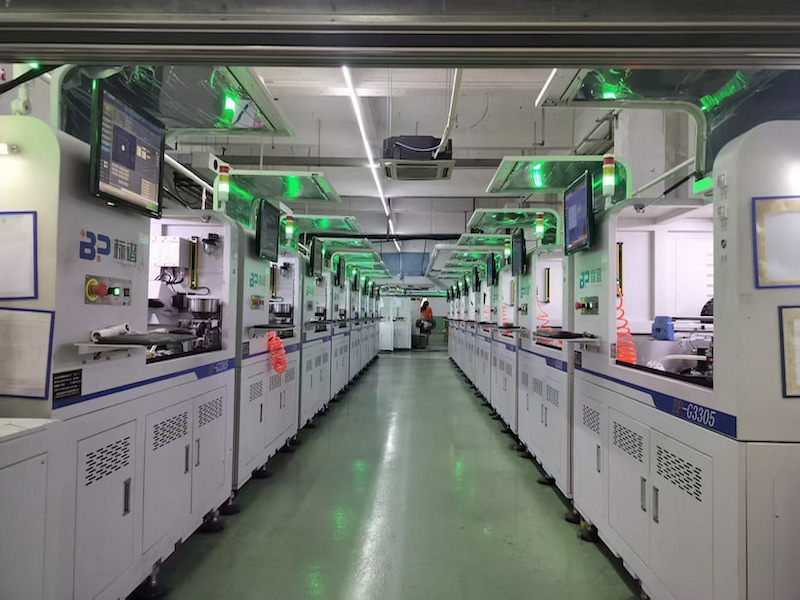

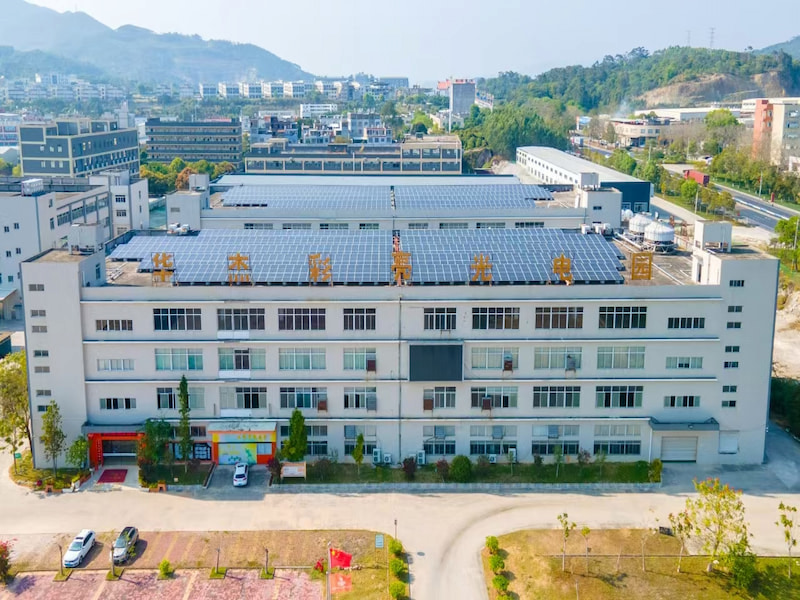

Self-Owned Industrial Park

Fujian Hoozoe Optoelectronic Co.,ltd, which specialized in full range LED display module producing and solutions supply with 15 years, self-owned industrial park and automatic production lines help cost and production time saving.

Our Service

Supply OEM & ODM service; 7x24 online service, every year organize technical team global inspection to help to solve problems.

Core Advantages of Hoozoe SMD Flexible LED Modules

1. Superior Image Quality

Fine pixel pitch (e.g., P1.2–P2.5) ensures clear, sharp visuals even at close viewing range
High color gamut and consistent saturation deliver vivid, true-to-life imagery
Adaptive brightness and contrast control enable comfortable viewing under various ambient lighting conditions

2. True Flexibility & Seamless Tiling

Bendable module structure supports installation on curved and irregular surfaces such as columns, arches, and waves
Modular design allows seamless assembly into large screens of virtually any size and aspect ratio
Enables creative freedom for customized spatial layouts and architectural integration

3. Reliability & Energy Efficiency

Built for 24/7 continuous operation with a lifespan exceeding 100,000 hours
Robust SMD packaging ensures stable performance in indoor and controlled environments
Low power consumption and minimal heat output support energy‑saving and quiet operation

4. Dynamic Content & Interactive Compatibility

Supports high‑refresh‑rate video, animations, live data streams, and other dynamic media formats
Ready to integrate with touch overlays, sensors, and interactive software for engaging user experiences

5. Professional & Commercial Value

Enhances brand presence with modern, visually impactful installations in corporate, retail, and public venues
Ideal for applications such as curved media walls, event stages, exhibition displays, broadcast studios, and creative architectural visuals
Increases audience engagement and visual appeal in commercial and high‑end environments
