GOB LED Modules
GOB P2.0 Indoor Led Module
GOB P2.0 Indoor Led Module
GOB P2.0 Indoor Led Module
GOB P2.0 Indoor Led Module

GOB P2.0 Indoor Led Module

Key Applications:

The P2.0 GOB Indoor LED Module is designed for mid-range viewing environments that prioritize cost-effectiveness alongside reliable performance, making it a versatile choice for applications such as large meeting rooms, educational institutions, retail stores, hotel lobbies, exhibitions and broadcast studios..

Product Parameters
  • Brand :

    Hoozoe
  • Model :

    P2.0 GOB LED Display Screen Module
  • Order(MOQ) :

    40 pcs
  • Payment :

    TT
  • Product Origin :

    China
  • Color :

    Full Color
  • Shipping Port :

    Xiamen
  • Lead Time :

    7 days
  • Weight :

    385g

Features


Pixel Pitch:
2.0 mm pixel pitch delivers clear and vibrant visuals for mid-range viewing, offering an optimal balance of image quality and value.

High Resolution & Detail:
GOB encapsulation provides robust protection while ensuring excellent color consistency, supporting dynamic HD content in various indoor lighting conditions.

Optimal Viewing Distance:
Designed for comfortable viewing within 3–15 meters, delivering a seamless and engaging visual experience without noticeable pixelation.

Reliable Technology:
The GOB protective coating safeguards against dust, physical impact, and environmental wear, enhancing product durability and long-term performance stability.

Easy Installation & Maintenance:
Standard modular design enables rapid assembly and convenient front maintenance, with factory calibration ensuring uniform color and brightness across the display.

Typical Applications:
Ideal for large meeting rooms, educational institutions, retail environments, hotel lobbies, corporate signage, and public information displays.



Parameter



  Parameter Name Product Parameter
Screen Maximum power consumption 490 W/㎡

Usage environment

Indoor

Viewing distance

≥2.0m

Blind spot rate

Less than 0.03%
Brightness 600 cd/
Average power consumption of the screen 200-290 W/㎡
Horizontal viewing angle of screen 120±10 degree

Vertical viewing angle of the screen

120±10 degree
Module

Pixel Pitch

2.0 mm

 Pixel Density

250000 Dots/
Resolution 160x80=12800 Dots
Structural characteristics Integrated light drive system
 Pixel composition 1R1G1B
Drive mode 1/40 scan constant current drive
Input voltage 4.2-5.5 V

Kit materials

Polycarbonate PC material
Weight  385 g
Power of unit module <26 W
Size (Long, Wide, and Thick) 320*160*15mm)
Maximum current <5.2 A

Use 4.2V/5V Switching Power Supply with Load Quantity

<pieces P2.0 full-color unit boards

System

Frame Frequency

>60 frames per second

Refresh frequency

3840Hz

Control mode

Computer control, one-to-one correspondence point by point, video synchronization, real-time display

 Brightness adjustment

256 level manual/automatic
Driver chip mode

Buffer 74HC245, decoding line tube 5958, PWM constant current FM6363 or

LS9930





Certetifcation of Hoozoe GOB LED Display Modules

LED display screen module CE certification







Core Advantages of Hoozoe GOB LED Display Modules

1. Superior Image Quality

  • Fine pixel pitch (e.g., P1.25–P2.5) ensures sharp, detailed visuals even at close viewing distances

  • High color saturation delivers vivid and true-to-life imagery

  • Adaptive brightness and contrast ratio for comfortable viewing in ambient light

2. Seamless Tiling & Flexible Expansion

  • Modular design allows assembly into large screens of any size and aspect ratio

  • Supports curved, column, and other custom shapes for diverse spatial layouts

3. Reliability & Energy Efficiency

  • Capable of 24/7 continuous operation with a lifespan of 100,000+ hours

  • GOB encapsulation provides dust and impact resistance for demanding indoor environments

  • Low power consumption and minimal heat generation for quiet, efficient operation

4. Dynamic Content & Interactive Capability

  • Supports video, animations, real-time data, and other dynamic content formats

  • Enables integration with touch and sensor technologies for interactive experiences

5. Professional & Commercial Value

  • Elevates corporate image with modern, high-impact visual communication

  • Ideal for information delivery in control rooms, lobbies, retail, and public spaces

  • Increases engagement and conversion rates in commercial environments

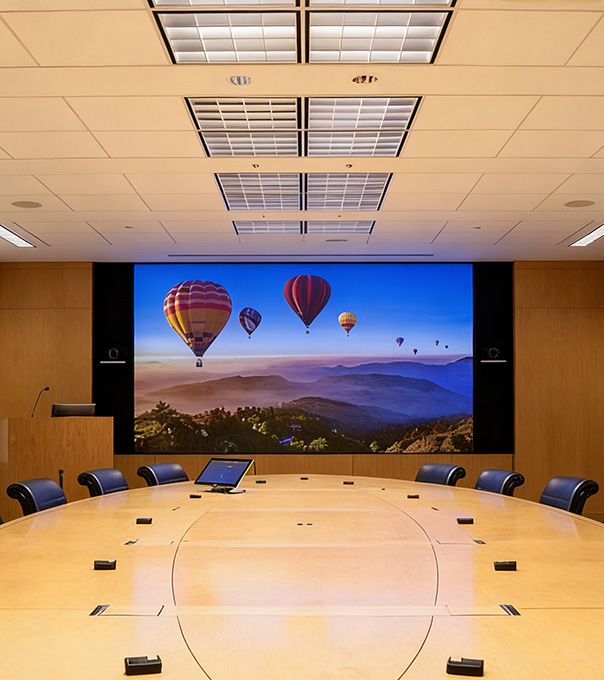

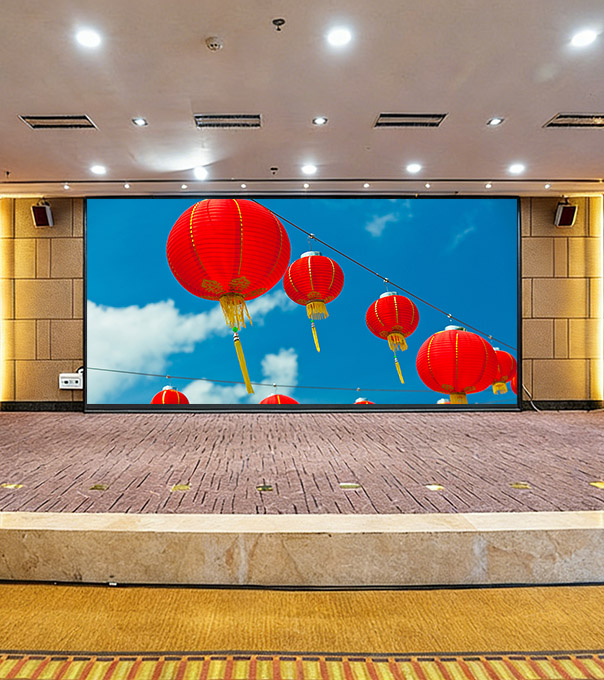

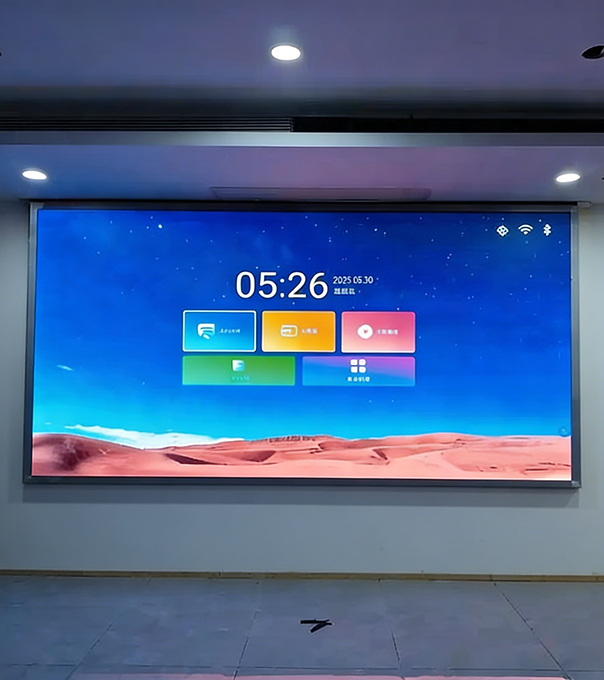

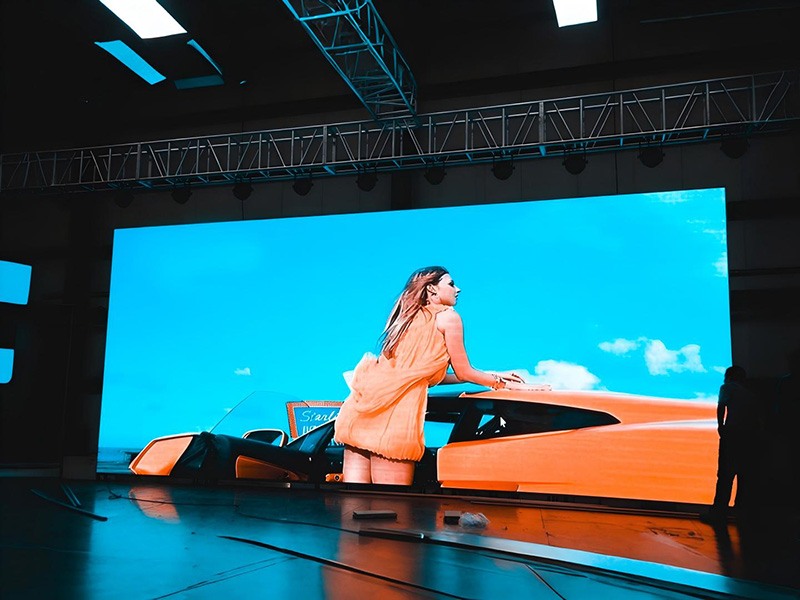

Applications Scenario

  • #

  • #

  • #
