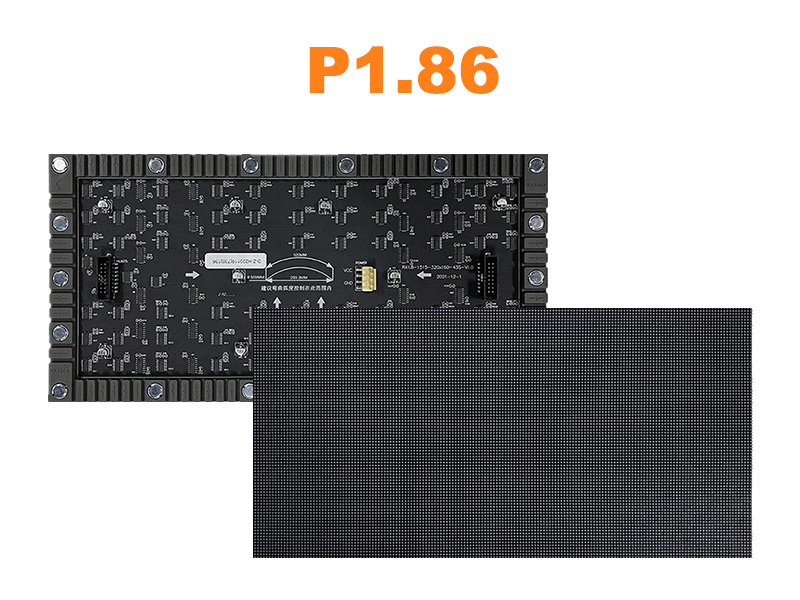

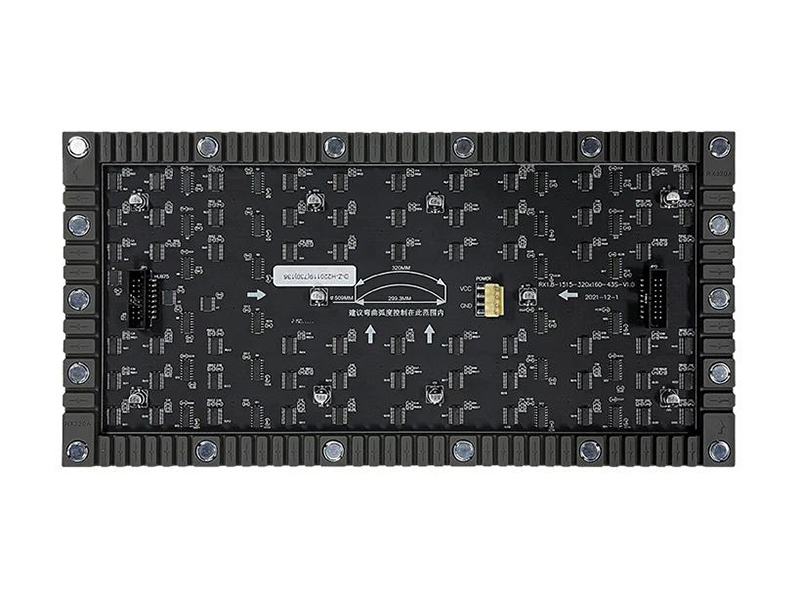

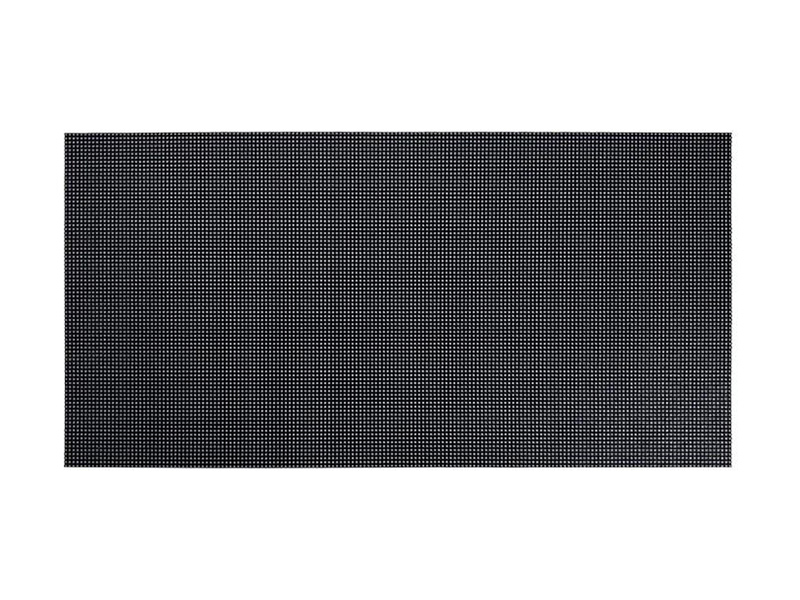

An economical yet high-performance flexible LED solution, delivering exceptional value for large-scale projects where resolution and budget are equally important. Its 1.8604mm pixel pitch provides a perfect blend of clarity and cost-effectiveness for both flat and curved installations.
Brand :
HoozoeModel :
SMD P1.86 Flexible LED ModuleOrder(MOQ) :
80 pcsPayment :
TTProduct Origin :
Zhangzhou FujianColor :
Full colorShipping Port :
XiamenLead Time :
7-15 daysWeight :
256gFeatures
Optimal Pixel Pitch: 1.8604mm spacing ensures clear and detailed images for standard viewing distances (typically 5-15 meters), making it an outstanding value-for-money choice for sizeable display areas.

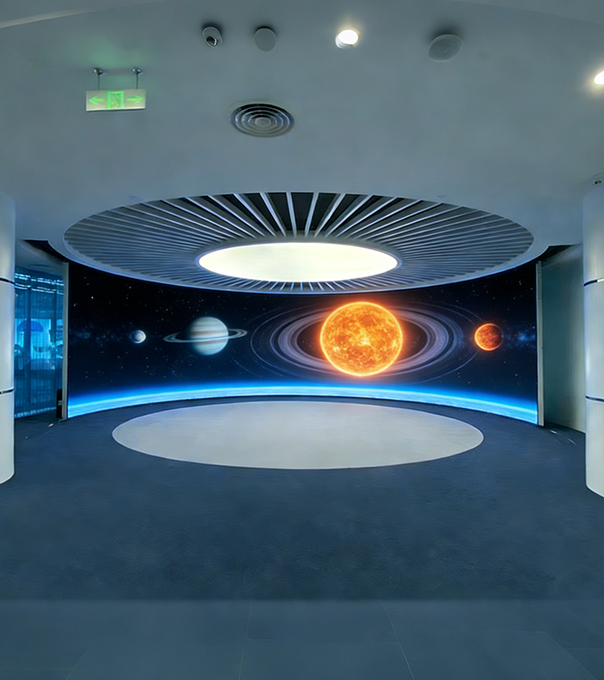

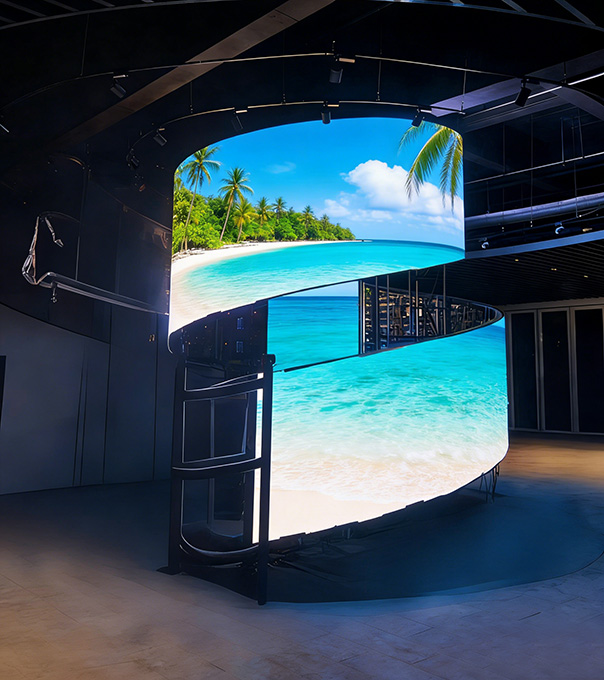

True Flexible Design: The bendable module unlocks creative freedom, allowing seamless deployment on curved surfaces such as columns, arches, and custom-shaped structures.
Professional Image Quality: High refresh rate (≥3840Hz) ensures flicker-free content capture and playback. With consistent brightness and color achieved through factory calibration, it delivers a smooth and uniform visual experience.
Durable & Easy to Install: Built with robust SMD LEDs for reliable operation. Its lightweight, modular design facilitates quick assembly, flexible front/rear maintenance, and efficient large-scale project deployment.
Ideal for: Large corporate lobbies, shopping mall media walls, event and stage backdrops, broadcast studios, control rooms, and other applications that require a balance of creative design, visual impact, and project budget.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | ≤650 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥1-12m | |
|
Blind spot rate |
Less than 0.02% | |
| Brightness | ≥ 500 cd/㎡ | |
| Average power consumption of the screen | 270 W/㎡ | |
| Horizontal viewing angle of screen | 160±10 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
1.8604mm |
|
Pixel Density |
288926 Dots/㎡ | |
| Resolution | 172x86=14792 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/43 scan constant current drive | |
| Input voltage | 4.2-5 V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 256 g | |
| Power of unit module | <20 W | |
| Size (Long, Wide, and Thick) | 320*160*7.6（mm) | |
| Maximum current | <4.7 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
<6pieces P1.8604 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
≥3840Hz | |
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | Buffer 74HC245, transistor 7559, PWM constant current FM6363/LS9929 | |
