A long-distance flexible LED display solution designed for mega-scale creative and architectural installations. Its 4mm pixel pitch delivers powerful visual impact and messaging clarity at an outstanding value for ultra-long-range viewing applications.
Brand :
HoozoeModel :
SMD P4 Flexible LED ModuleOrder(MOQ) :
80 pcsPayment :
TTProduct Origin :
Zhangzhou FujianColor :
Full colorShipping Port :
XiamenLead Time :
7-15 daysWeight :
230gFeatures
Ultra-Long-Range Clarity: A 4.0mm pixel pitch ensures excellent content readability and visual impact for viewing distances typically beyond 20 meters, representing the optimal cost-performance choice for monumental flexible display projects.

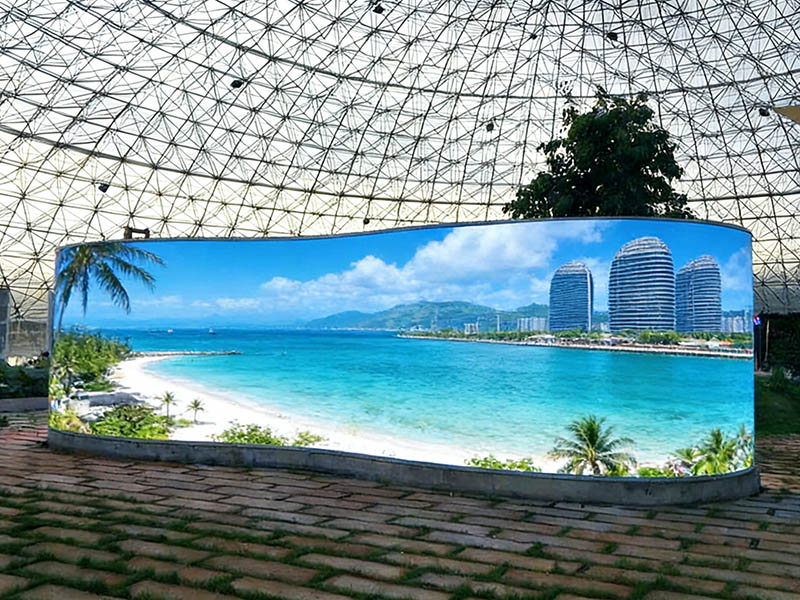

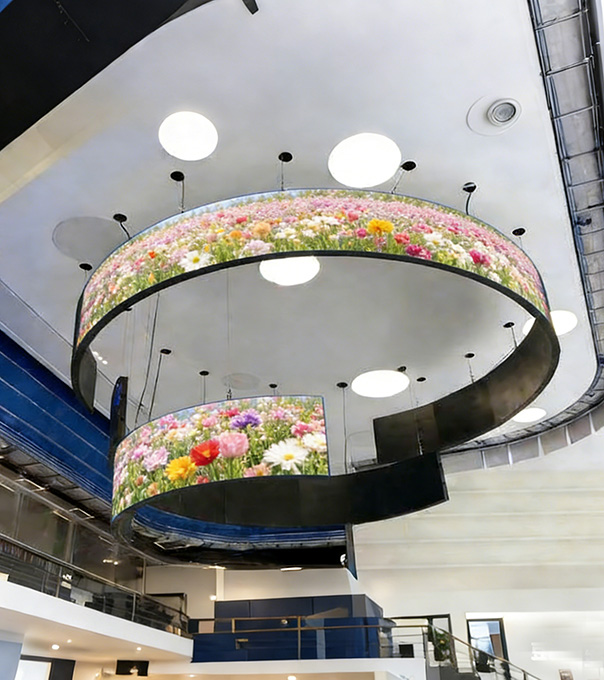

Architectural Integration: The flexible design enables the creation of large-scale curved and custom-shaped canvases, seamlessly blending with building structures for immersive brand spectacles and dynamic architectural lighting.
Robust Visual Performance: High refresh rate technology ensures stable, flicker-free visuals for live events. Factory calibration guarantees uniform brightness and color across vast display areas.
Engineered for Large Projects: Built for durability and scalability with a modular, lightweight structure that supports rapid deployment, simplified maintenance, and reliable performance in challenging environments.
Ideal for: Mega outdoor advertising billboards, stadium façade and roof displays, large concert touring screens, airport and transportation hub media walls, and any project requiring grand-scale visual storytelling with creative form flexibility.
Parameter
| Parameter Name | Product Parameter | Product Parameter | |
| Screen | Maximum power consumption | 280 W/㎡ | ≤800 W/㎡ |
|
Usage environment |
Indoor | ||
|
Viewing distance |
≥4.0m | 4.0-20m | |
|
Blind spot rate |
Less than 0.03% | ||
| Brightness | ≥ 500 cd/㎡ | ≥ 400 cd/㎡ | |
| Average power consumption of the screen | 100-150 W/㎡ | 270 W/㎡ | |
| Horizontal viewing angle of screen | 160±10 degree | 160±10 degree | |
|
Vertical viewing angle of the screen |
140±10 degree | 120±10 degree | |
| Module |
Pixel Pitch |
4.0mm | 4.0mm |
|
Pixel Density |
62500 Dots/㎡ | ||
| Resolution | 64x32=2048 Dots | 80x40=3200 Dots | |
| Structural characteristics | Integrated light drive system | ||
| Pixel composition | 1R1G1B | ||
| Drive mode | 1/16 scan constant current drive | 1/20 scan constant current drive | |
| Input voltage | 4.5-5 V | 5 V | |
|
Kit materials |
Polycarbonate PC material | ||
| Weight | 200 g | 230 g | |
| Power of unit module | 8.75 W | <15W | |
| Size (Long, Wide, and Thick) | 256*128*7.6（mm) | 256*128*7.65（mm) | |
| Maximum current | 1.8 A | <4.2 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
<8 pieces P4.0 full-color unit boards | ||
|
System |
Frame Frequency |
>60 frames per second | |
|
Refresh frequency |
1920HZ/3840Hz | 1920HZ | |
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
||
|
Brightness adjustment |
256 level manual/automatic |
||
| Driver chip mode | Buffer 74HC245, decoding line tube 7258, dual latch constant current IC-6124/9931 | Buffer 74HC245, decoding line tube 7258, dual latch constant current IC | |
