GOB LED Modules
GOB P2.5 Indoor Led Module
GOB P2.5 Indoor Led Module
GOB P2.5 Indoor Led Module
GOB P2.5 Indoor Led Module

GOB P2.5 Indoor Led Module

Key Applications:

The P2.0 GOB Indoor LED Module is a cost-effective yet reliable solution for mid-sized to large indoor environments such as corporate meeting rooms, educational venues, retail stores, hotel lobbies, and general digital signage applications.

Product Parameters
  • Brand :

    Hoozoe
  • Model :

    P2.5 GOB LED Display Screen Module
  • Order(MOQ) :

    40 pcs
  • Payment :

    TT
  • Product Origin :

    China
  • Color :

    Full Color
  • Shipping Port :

    Xiamen
  • Lead Time :

    7 days
  • Weight :

    374g

Features


Pixel Pitch:
2.5 mm pixel pitch delivers clear and stable visuals for mid- to long-range viewing, balancing performance and cost-efficiency.

High Resolution & Detail:
GOB encapsulation enhances protection while maintaining visual consistency, supporting vivid content with uniform color performance in typical indoor lighting.

Optimal Viewing Distance:
Designed for comfortable viewing within 4–20 meters, offering a seamless visual experience without visible pixelation.

Reliable Technology:
GOB protective coating resists dust, impact, and environmental wear, improving durability and ensuring stable long-term operation.

Easy Installation & Maintenance:
Standard modular design supports quick assembly and front maintenance, with factory calibration for consistent color and brightness across the screen.

Typical Applications:
Well-suited for large meeting rooms, lecture halls, retail stores, hotel venues, corporate lobbies, and public information displays where clarity and value are key.



Parameter



  Parameter Name Product Parameter
Screen Maximum power consumption 322 W/㎡

Usage environment

Indoor

Viewing distance

≥2.5m

Blind spot rate

Less than 0.03%
Brightness > 500 cd/
Average power consumption of the screen 110-170 W/㎡
Horizontal viewing angle of screen 120±10 degree

Vertical viewing angle of the screen

120±10 degree
Module

Pixel Pitch

2.5 mm

 Pixel Density

160000 Dots/
Resolution 128x64=8192 Dots
Structural characteristics Integrated light drive system
 Pixel composition 1R1G1B
Drive mode 1/32 scan constant current drive
Input voltage 4.5-5.5 V

Kit materials

Polycarbonate PC material
Weight  374 g
Power of unit module <16.5 W
Size (Long, Wide, and Thick) 320*160*16.5mm)
Maximum current <4.5 A

Use 4.2V/5V Switching Power Supply with Load Quantity

<8 pieces P2.5 full-color unit boards

System

Frame Frequency

>60 frames per second

Refresh frequency

1920Hz

Control mode

Computer control, one-to-one correspondence point by point, video synchronization, real-time display

 Brightness adjustment

256 level manual/automatic
Driver chip mode

Buffer 74HC245, decoding line tube 7258, dual latch constant current chip





Certetifcation of Hoozoe GOB LED Display Modules

LED display screen module CE certification







Core Advantages of Hoozoe GOB LED Display Modules

1. Superior Image Quality

  • Fine pixel pitch (e.g., P1.25–P2.5) ensures sharp, detailed visuals even at close viewing distances

  • High color saturation delivers vivid and true-to-life imagery

  • Adaptive brightness and contrast ratio for comfortable viewing in ambient light

2. Seamless Tiling & Flexible Expansion

  • Modular design allows assembly into large screens of any size and aspect ratio

  • Supports curved, column, and other custom shapes for diverse spatial layouts

3. Reliability & Energy Efficiency

  • Capable of 24/7 continuous operation with a lifespan of 100,000+ hours

  • GOB encapsulation provides dust and impact resistance for demanding indoor environments

  • Low power consumption and minimal heat generation for quiet, efficient operation

4. Dynamic Content & Interactive Capability

  • Supports video, animations, real-time data, and other dynamic content formats

  • Enables integration with touch and sensor technologies for interactive experiences

5. Professional & Commercial Value

  • Elevates corporate image with modern, high-impact visual communication

  • Ideal for information delivery in control rooms, lobbies, retail, and public spaces

  • Increases engagement and conversion rates in commercial environments

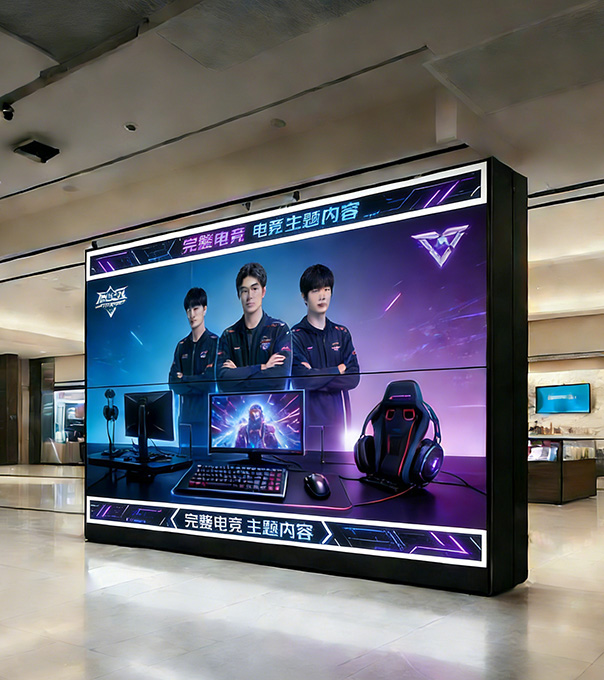

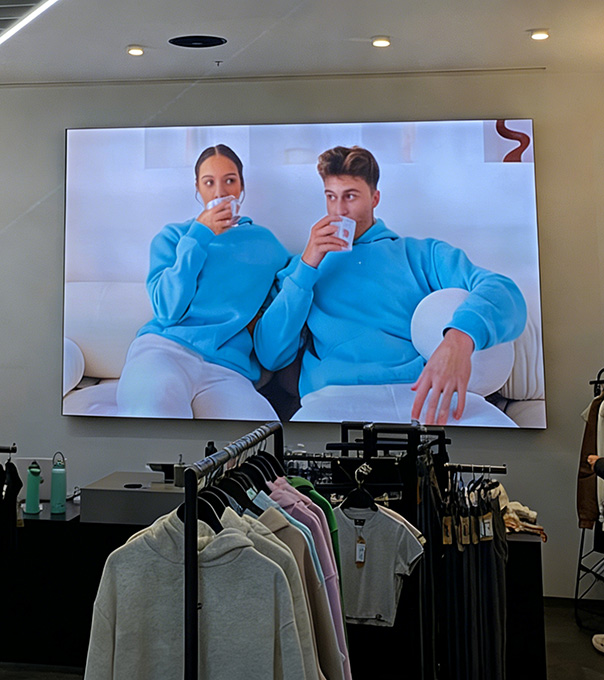

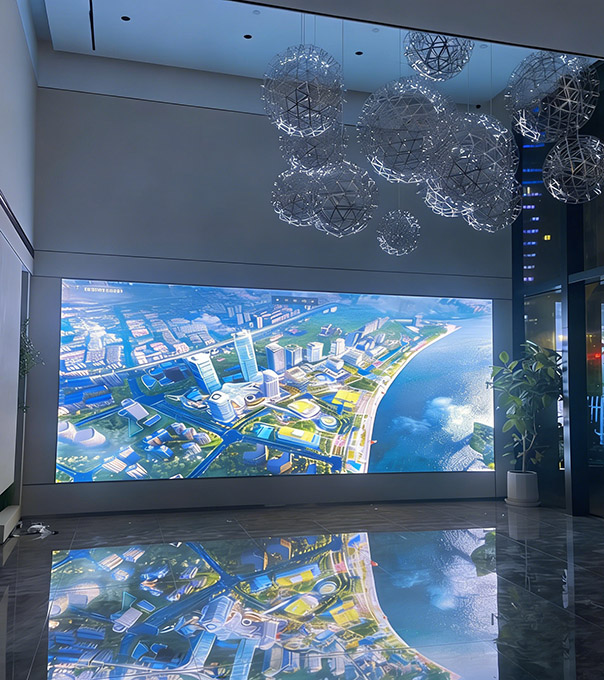

Applications Scenario

  • #

  • #

  • #
