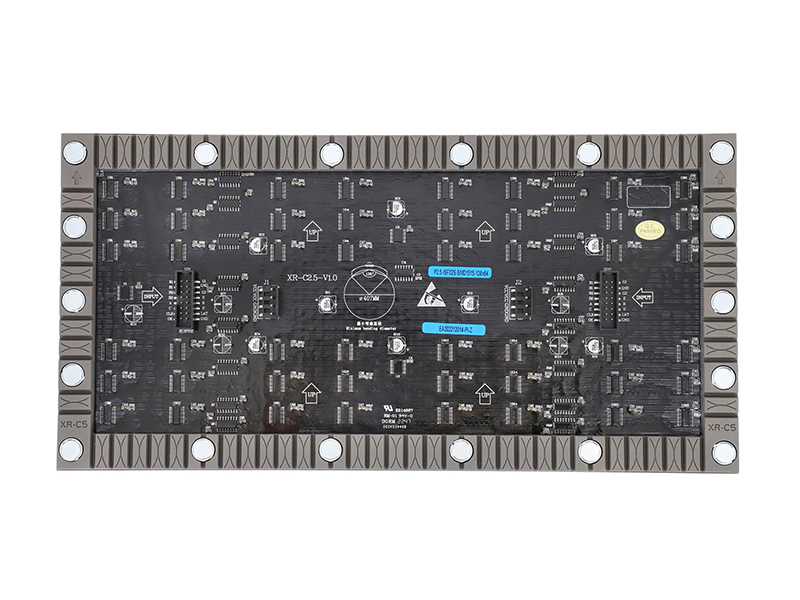

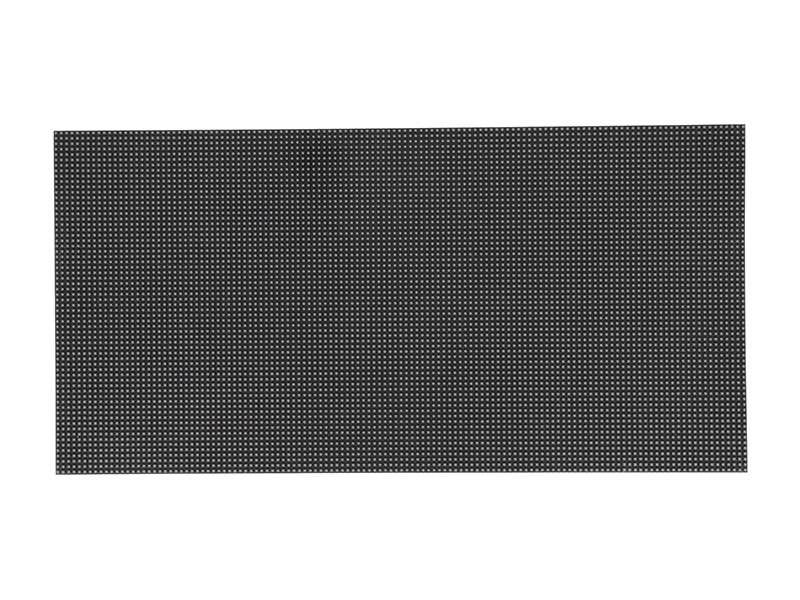

SMD P2.5 Flexible LED Module

SMD P2.5 Flexible LED Module

A large-format, flexible LED display solution designed for cost-effective installations where visual impact, reliability and creative form are essential. Its 2.5mm pixel pitch delivers compelling clarity at an outstanding value for mid to long-distance viewing.

Product Parameters
  • Brand :

    Hoozoe
  • Model :

    SMD P2.5 Flexible LED Module
  • Order(MOQ) :

    80 pcs
  • Payment :

    TT
  • Product Origin :

    Zhangzhou Fujian
  • Color :

    Full color
  • Shipping Port :

    Xiamen
  • Lead Time :

    7-15 days
  • Weight :

    230g

Features




  • Large-Format Value Pitch: A 2.5mm pixel pitch provides excellent image clarity for mid to long viewing distances (typically 10-30 meters), making it a highly cost-effective choice for expansive flexible screen projects.



  • Creative Shape Freedom: The flexible module design allows for easy deployment on curved surfaces and architectural features, enabling the creation of immersive cylindrical displays, wave-like walls, and other custom visual structures.



  • Professional Visual Performance: High refresh rate (≥3840Hz) ensures smooth, flicker-free video for live events and camera recording. Factory calibration delivers uniform brightness and color across the entire display.



  • Rugged & Easy to Scale: Built with durable components for reliable long-term operation. The lightweight, modular design supports fast, large-area assembly and simplifies maintenance, significantly reducing project timelines.



  • Ideal for: Large event stages and concert backdrops, sports venue perimeter displays, shopping mall atrium media walls, corporate lobby features, and any application requiring a large, creatively shaped visual canvas.





Parameter



  Parameter Name Product Parameter

Module
Module Name P2.5mm

Module Size

320*160mm

Pixel Pitch

2.5mm

Pixel Density

160000 Dots/㎡

 Pixel Composition

1R1G1B
Package Mode SMD2121
Resolution 128x64=8192 Dots

Module Max Power

≤15 W

Module thickness

7.65mm

Weight

0.23 Kg

Drive Mode

constant current driver

Scan Type

1/32 ,1/64 scan
 Port Type HUB75B

Brightness

≥500 cd/㎡

Viewing Angle

160°(W) 120°(H)

Average Power

180 W/㎡

Max Power

≤600 W/㎡

Refresh frequency

≥3840Hz



Core Advantages of Hoozoe SMD Flexible LED Modules

1. Superior Image Quality

  • Fine pixel pitch (e.g., P1.2–P2.5) ensures clear, sharp visuals even at close viewing range
  • High color gamut and consistent saturation deliver vivid, true-to-life imagery
  • Adaptive brightness and contrast control enable comfortable viewing under various ambient lighting conditions

2. True Flexibility & Seamless Tiling

  • Bendable module structure supports installation on curved and irregular surfaces such as columns, arches, and waves
  • Modular design allows seamless assembly into large screens of virtually any size and aspect ratio
  • Enables creative freedom for customized spatial layouts and architectural integration

3. Reliability & Energy Efficiency

  • Built for 24/7 continuous operation with a lifespan exceeding 100,000 hours
  • Robust SMD packaging ensures stable performance in indoor and controlled environments
  • Low power consumption and minimal heat output support energy‑saving and quiet operation

4. Dynamic Content & Interactive Compatibility

  • Supports high‑refresh‑rate video, animations, live data streams, and other dynamic media formats
  • Ready to integrate with touch overlays, sensors, and interactive software for engaging user experiences

5. Professional & Commercial Value

  • Enhances brand presence with modern, visually impactful installations in corporate, retail, and public venues
  • Ideal for applications such as curved media walls, event stages, exhibition displays, broadcast studios, and creative architectural visuals
  • Increases audience engagement and visual appeal in commercial and high‑end environments

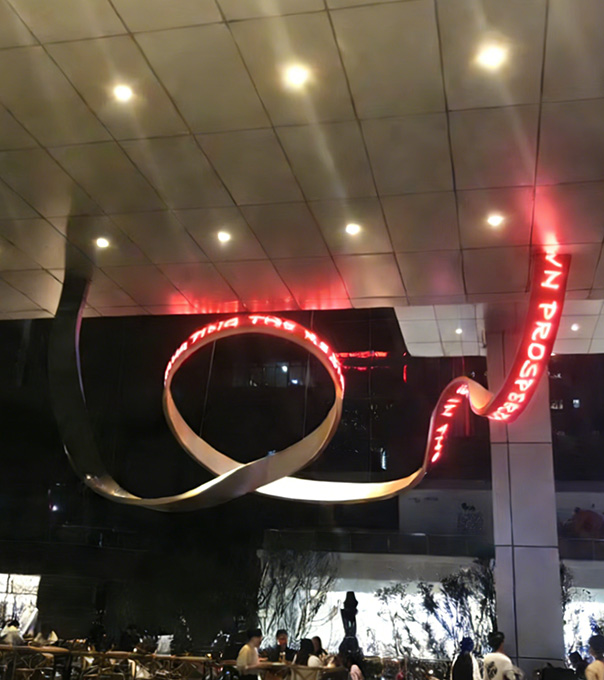

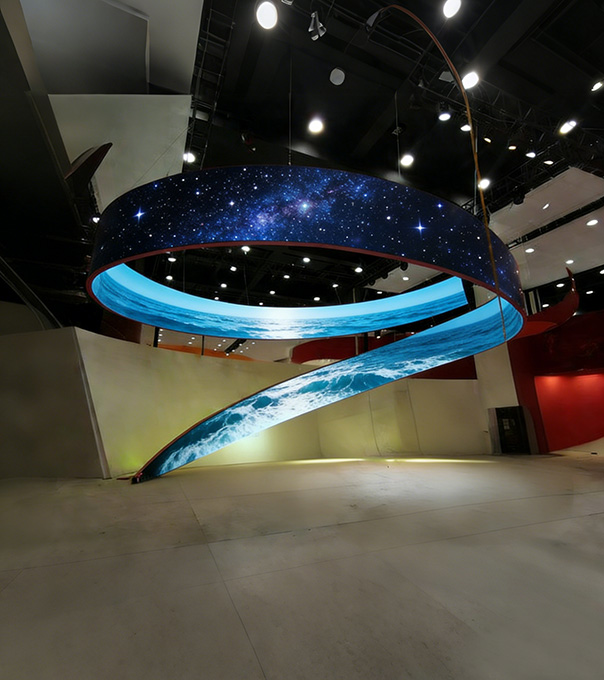

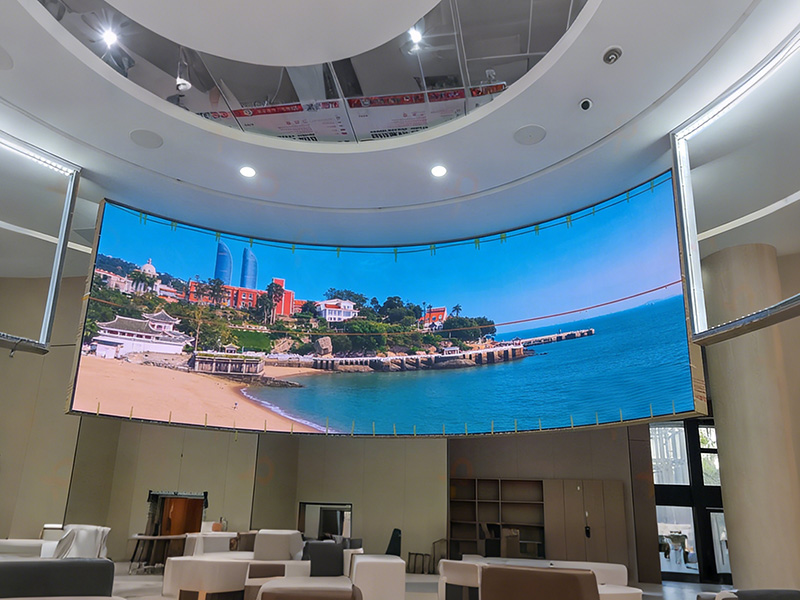

Applications Scenario

  • #

  • #

  • #
