SMD P1.53 Flexible LED Module

A high-performance flexible LED solution designed to deliver sharp visuals at an optimal balance of resolution and value. Its 1.53mm pixel pitch enables clear, detailed images for both standard and creative display applications.

Product Parameters

Brand :
Hoozoe
Model :
SMD P1.53 Flexible LED Module
Order(MOQ) :
80 pcs
Payment :
TT
Product Origin :
Zhangzhou Fujian
Color :
Full color
Shipping Port :
Xiamen
Lead Time :
7-15 days
Weight :
256g

Inquiry now

Features

Fine Pixel Pitch: A 1.53mm pixel pitch provides excellent image clarity for mid-to-close viewing distances (typically 3-8 meters), balancing high definition with cost-efficiency.

Flexible & Adaptable: The bendable module design allows for smooth installation on curved surfaces and architectural features, unlocking creative possibilities beyond flat screens.

Stable Visual Performance: Driven by a high refresh rate (≥3840Hz), it effectively eliminates flicker and scan lines for smooth video capture and playback. Factory calibration ensures consistent brightness and color across the display.

Reliable & User-Friendly: Lightweight modular construction supports fast installation and easy front/rear maintenance. Designed for stability in controlled indoor environments.

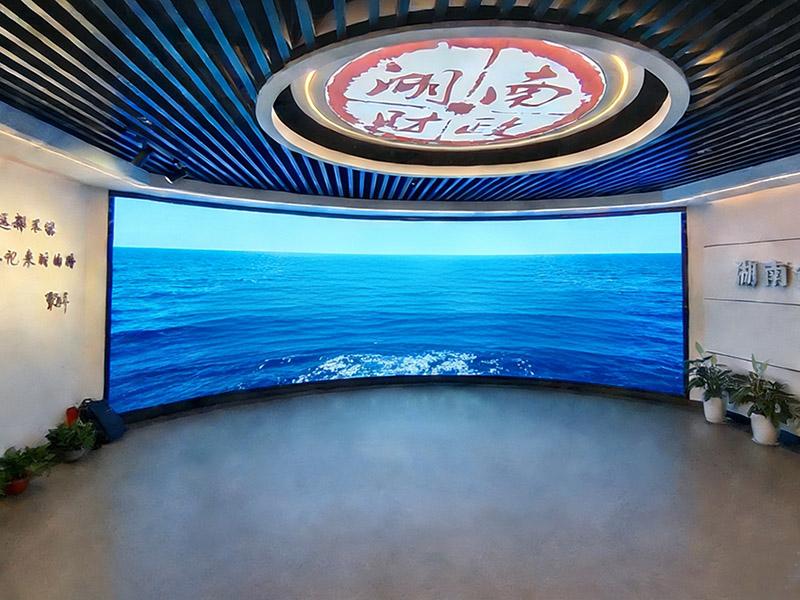

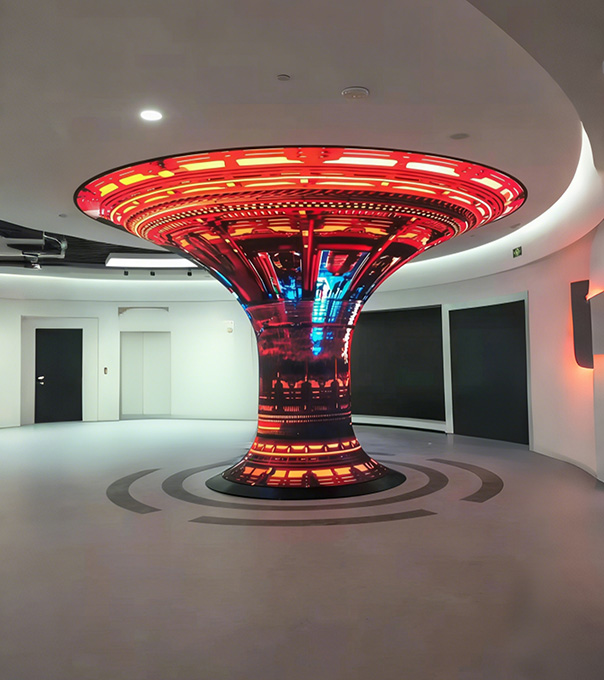

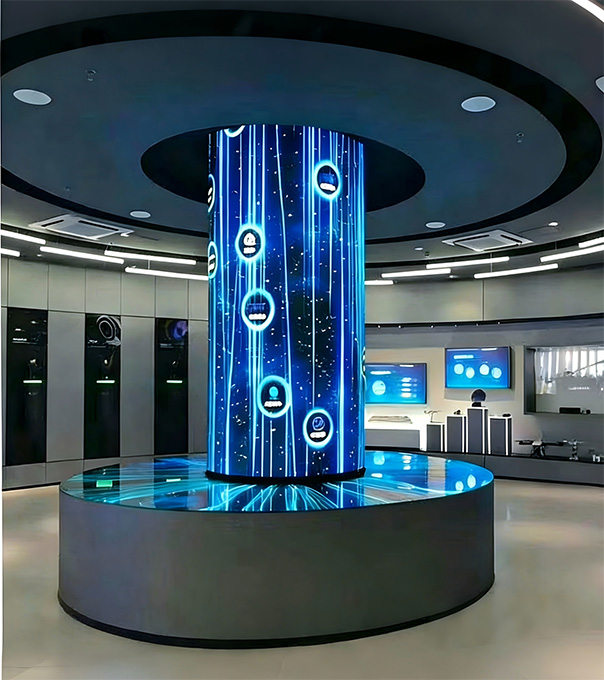

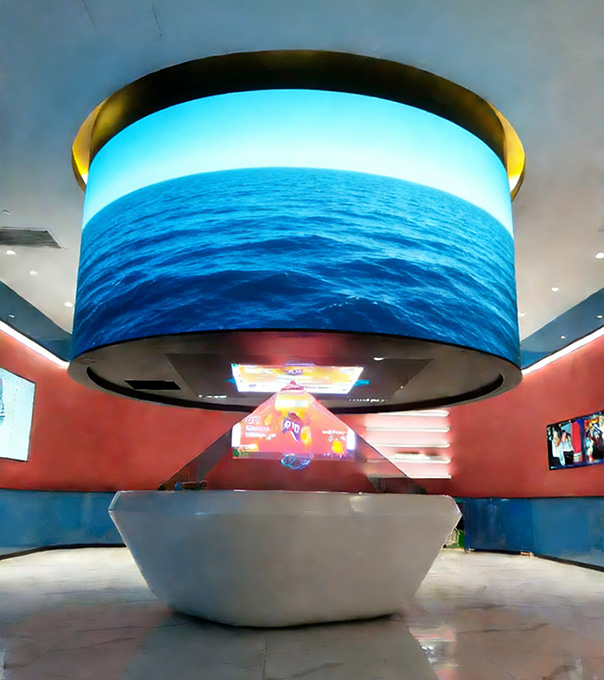

Ideal for: Corporate lobbies, retail media walls, broadcast studios, control rooms, event stages, and other premium installations requiring flexible formats and reliable, high-quality visuals.

Parameter

	Parameter Name	Product Parameter
Module	Module Name	P1.538
	Module Size	320*160mm
	Pixel Pitch	1.538mm
	Pixel Density	432640 Dots/㎡
	Pixel Composition	1R1G1B
	Package Mode	SMD1212
	Resolution	208x104=21632 Dots
	Module Max Power	≤15 W
	Module thickness	7.6mm
	Weight	0.256 Kg
	Drive Mode	constant current driver
	Scan Type	1/52 scan
	Port Type	HUB75B
	Brightness	≥500 cd/㎡
	Viewing Angle	160°(W) 120°(H)
	Average Power	270 W/㎡
	Max Power	≤650 W/㎡
	Refresh frequency	≥3840Hz
