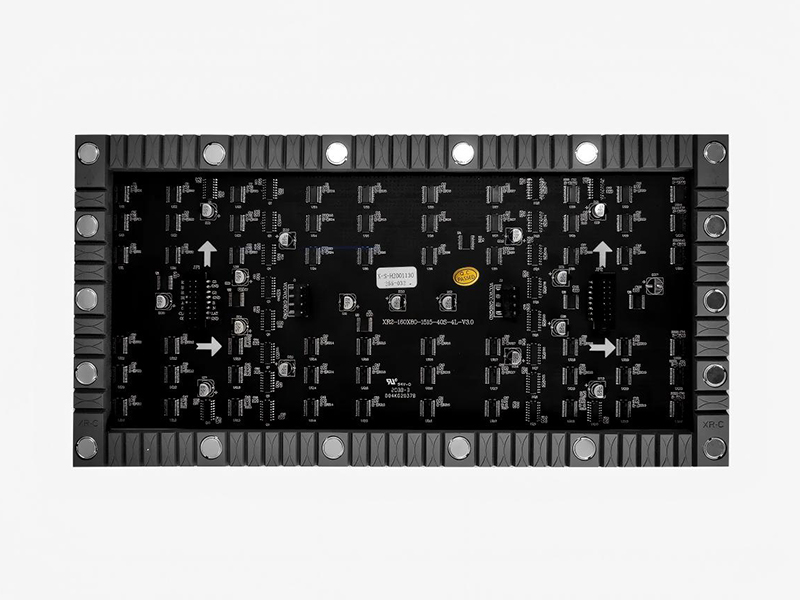

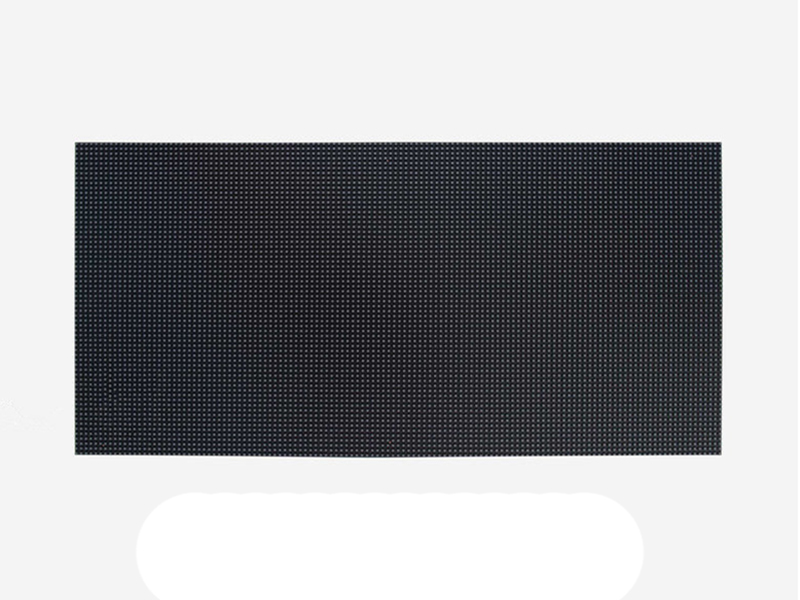

SMD P2 Flexible LED Module

An optimal entry into flexible LED display technology, offering a proven balance of image quality, creative freedom, and project affordability. Its 2.0mm pixel pitch is a versatile choice for impactful large-format installations where viewing distance allows.

Product Parameters

Brand :
Hoozoe
Model :
SMD P2 Flexible LED Module
Order(MOQ) :
80 pcs
Payment :
TT
Product Origin :
Zhangzhou Fujian
Color :
Full color
Shipping Port :
Xiamen
Lead Time :
7-15 days
Weight :
256g

Inquiry now

Features

Proven & Cost-Effective Pitch: A 2.0mm pixel pitch provides clear and engaging visuals for standard viewing distances (typically 6-20 meters), representing an ideal entry point for large-scale flexible screen projects.

Seamless Curved Installations: The flexible design enables smooth integration onto curved architectural elements, transforming spaces with dynamic shapes and immersive visuals.

Stable & Broadcast-Ready: High refresh rate technology (≥3840Hz) ensures content appears smooth and flicker-free for live events and camera capture, delivering a professional viewing experience.

Designed for Deployment: Rugged construction ensures reliability, while the lightweight, modular format allows for rapid assembly and straightforward front/rear maintenance, streamlining large-project execution.

Ideal for: Event stages and backdrops, large retail media walls, corporate atrium displays, broadcast studio sets, and other applications requiring large-scale visual impact combined with creative form factors.

Parameter

	Parameter Name	Product Parameter
Screen	Maximum power consumption	490 W/㎡
	Usage environment	Indoor
	Viewing distance	≥2.5m
	Blind spot rate	Less than 0.03%
	Brightness	≥ 500 cd/㎡
	Average power consumption of the screen	200-290 W/㎡
	Horizontal viewing angle of screen	120±10 degree
	Vertical viewing angle of the screen	120±10 degree
Module	Pixel Pitch	2.0mm
	Pixel Density	250000 Dots/㎡
	Resolution	160x80=12800 Dots
	Structural characteristics	Integrated light drive system
	Pixel composition	1R1G1B
	Drive mode	1/40 scan constant current drive
	Input voltage	4.2-5.5 V
	Kit materials	Polycarbonate PC material
	Weight	256 g
	Power of unit module	16 W
	Size (Long, Wide, and Thick)	3201607.65（mm)
	Maximum current	5.2 A
	Use 4.2V/5V Switching Power Supply with Load Quantity	<6pieces P2.0 full-color unit boards
System	Frame Frequency	>60 frames per second
	Refresh frequency	≥3840Hz
	Control mode	Computer control, one-to-one correspondence point by point, video synchronization, real-time display
	Brightness adjustment	256 level manual/automatic
Driver chip mode	Buffer 74HC245, decoding line tube 5958, PWM constant current FM6363 or LS9930

Core Advantages of Hoozoe SMD Flexible LED Modules

1. Superior Image Quality

Fine pixel pitch (e.g., P1.2–P2.5) ensures clear, sharp visuals even at close viewing range
High color gamut and consistent saturation deliver vivid, true-to-life imagery
Adaptive brightness and contrast control enable comfortable viewing under various ambient lighting conditions

2. True Flexibility & Seamless Tiling

Bendable module structure supports installation on curved and irregular surfaces such as columns, arches, and waves
Modular design allows seamless assembly into large screens of virtually any size and aspect ratio
Enables creative freedom for customized spatial layouts and architectural integration

3. Reliability & Energy Efficiency

Built for 24/7 continuous operation with a lifespan exceeding 100,000 hours
Robust SMD packaging ensures stable performance in indoor and controlled environments
Low power consumption and minimal heat output support energy‑saving and quiet operation

4. Dynamic Content & Interactive Compatibility

Supports high‑refresh‑rate video, animations, live data streams, and other dynamic media formats
Ready to integrate with touch overlays, sensors, and interactive software for engaging user experiences

5. Professional & Commercial Value

Enhances brand presence with modern, visually impactful installations in corporate, retail, and public venues
Ideal for applications such as curved media walls, event stages, exhibition displays, broadcast studios, and creative architectural visuals
Increases audience engagement and visual appeal in commercial and high‑end environments

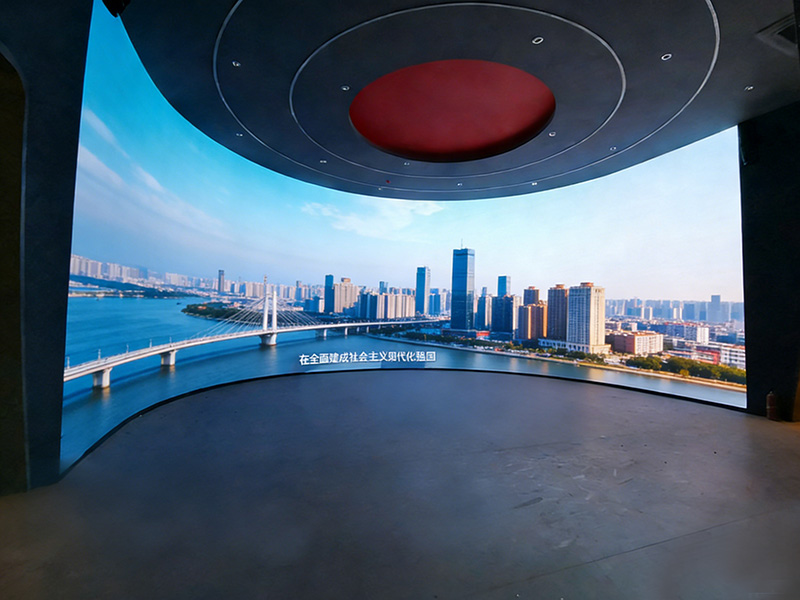

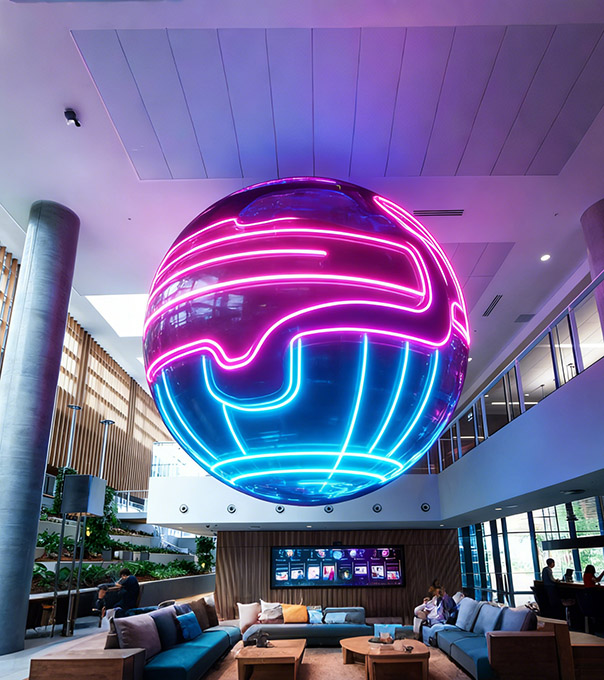

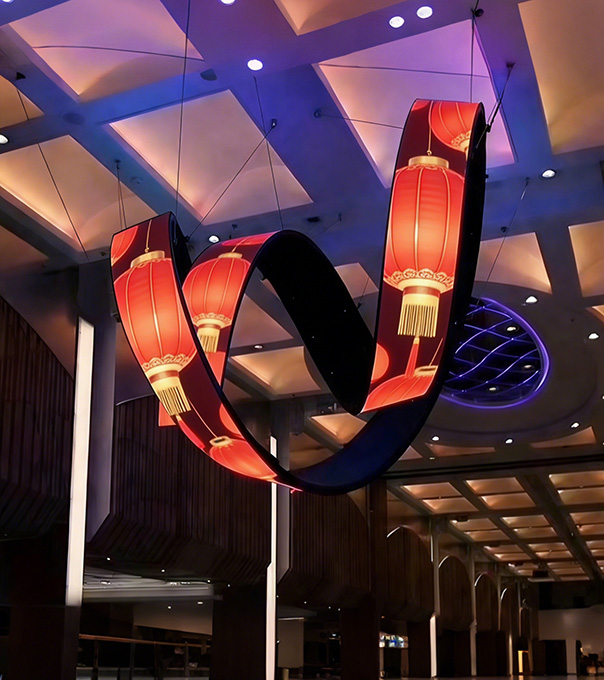

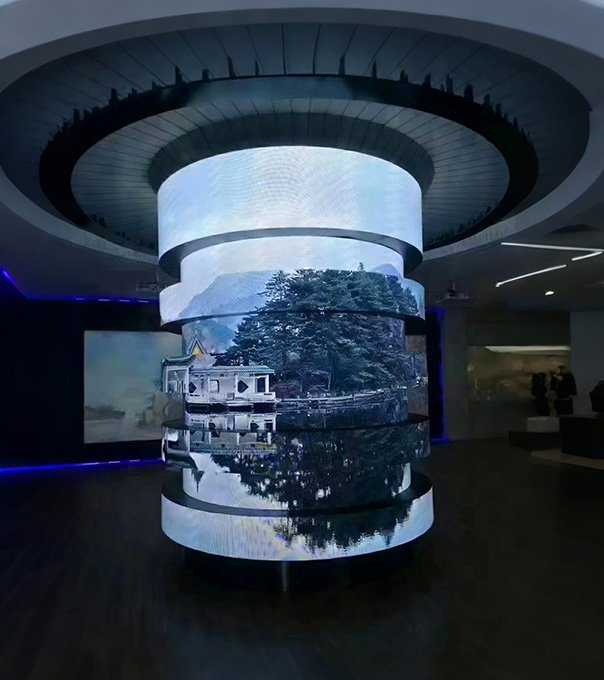

Applications Scenario
