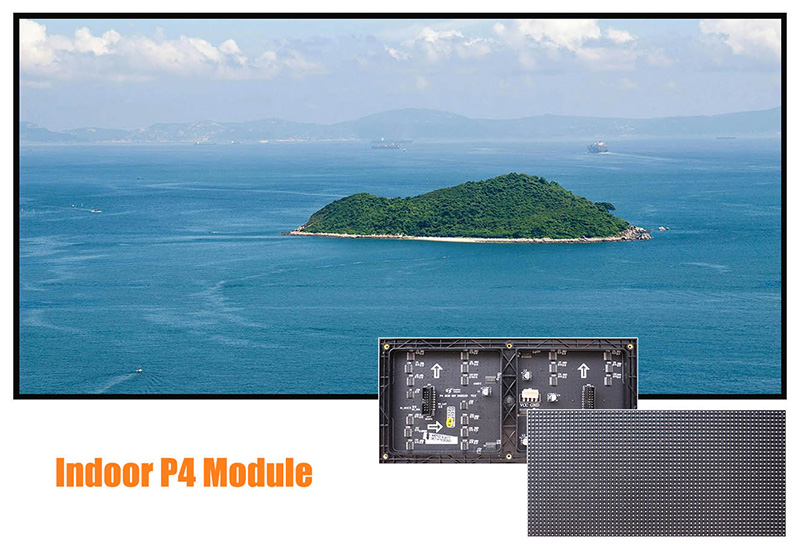

A robust and cost-effective display solution, the SMD Indoor P4 LED Module offers excellent value for large-scale visual projects. With a clear 4mm pixel pitch, it delivers bright and impactful content ideal for viewing at medium to long distances.

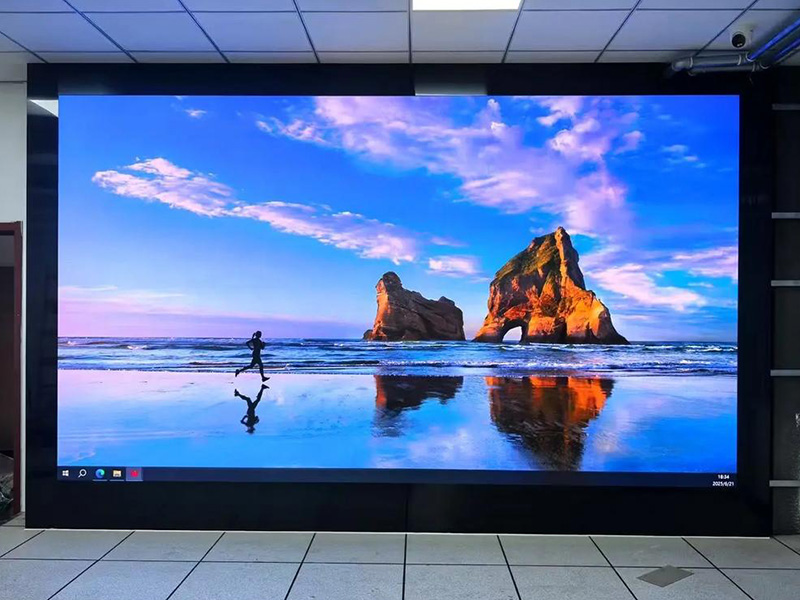

Designed for reliability and seamless integration, it’s the perfect choice for creating vibrant video walls in conference halls, auditoriums, retail spaces, and event venues.
Brand :
HoozoeModel :
SMD Indoor P4 LED Full Color ModuleOrder(MOQ) :
50Payment :
TTProduct Origin :
ZhangzhouColor :
Full colorShipping Port :
Xiamen/ShenzhenLead Time :
10 daysWeight :
231.3gFeatures
Pixel Pitch:
Featuring a 4.0 mm pixel pitch, this module offers an optimal balance of visual clarity and cost-efficiency, making it a highly practical and economical solution for a diverse range of large-scale indoor display projects.
High Resolution & Detail:
Its efficient pixel configuration delivers bright and clearly legible visuals, capably supporting video presentations, promotional graphics, and essential informational content for effective communication across intended viewing ranges.
Optimal Viewing Distance:
Engineered for mid- to long-range viewing, it provides a comfortable and integrated viewing experience by minimizing visible pixelation, ideal for audiences positioned from several meters to longer distances.
Reliable Technology:
Built with robust Surface-Mount Device (SMD) packaging, the module ensures consistent color performance, reliable screen uniformity, and durable long-term operational stability.

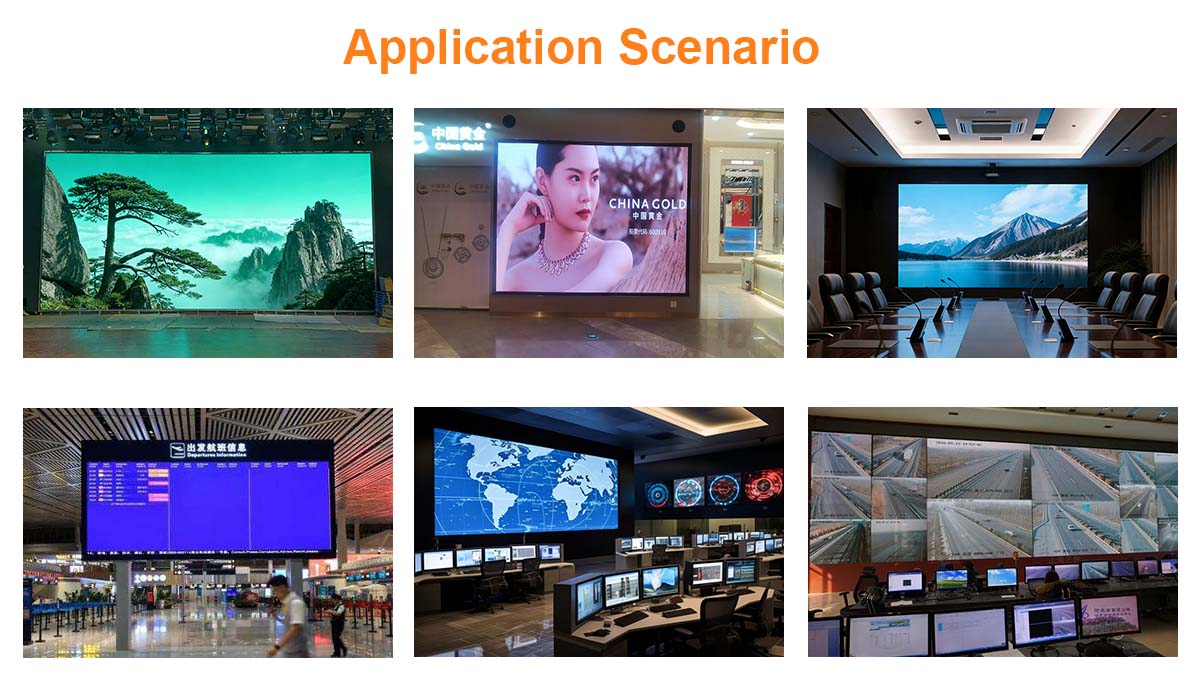

Typical Applications:
Well-suited for large-format installations in environments such as school auditoriums, corporate event halls, shopping mall atriums, hotel conference centers, and public information displays in transportation hubs.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 610 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥4.0m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | > 1000 cd/㎡ | |
| Average power consumption of the screen | 300-350 W/㎡ | |
| Horizontal viewing angle of screen | 120±10 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
4.0mm |
|
Pixel Density |
62500 Dots/㎡ | |
| Resolution | 64x32=2048 Dots | |

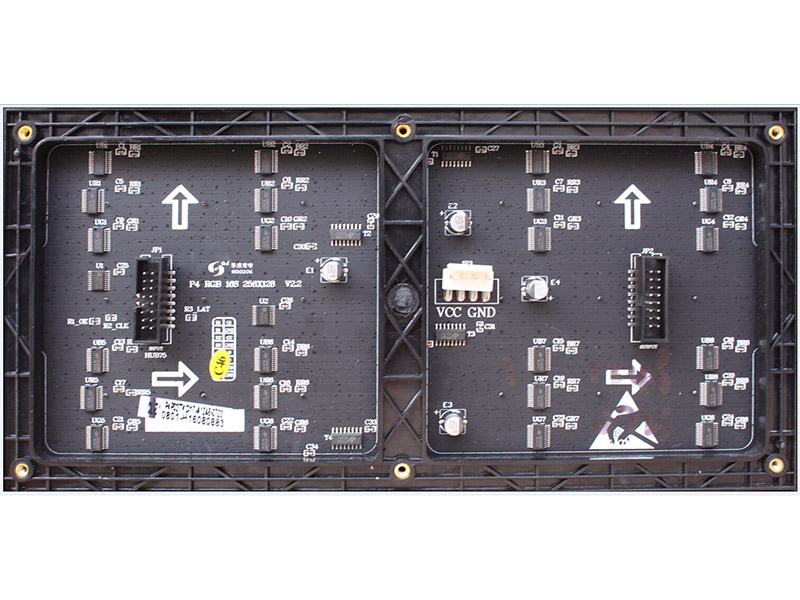

| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/16 scan constant current drive | |
| Input voltage | 4.8-5.5V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 231.3 g | |
| Power of unit module | 20 W | |
| Size (Long, Wide, and Thick) | 256*128*13.5（mm) | |
| Maximum current | 4 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
≤8 pieces P4.0 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
Carrying 64 points at 2880Hz (grayscale 16384) Carrying 64 points at 1920Hz (low gray is better) Carrying 128 points at 1440Hz Carrying 192 points at 1200Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | Buffer 74HC245, decoding line tube 7258, dual latch constant current IC-LS9918 | |
