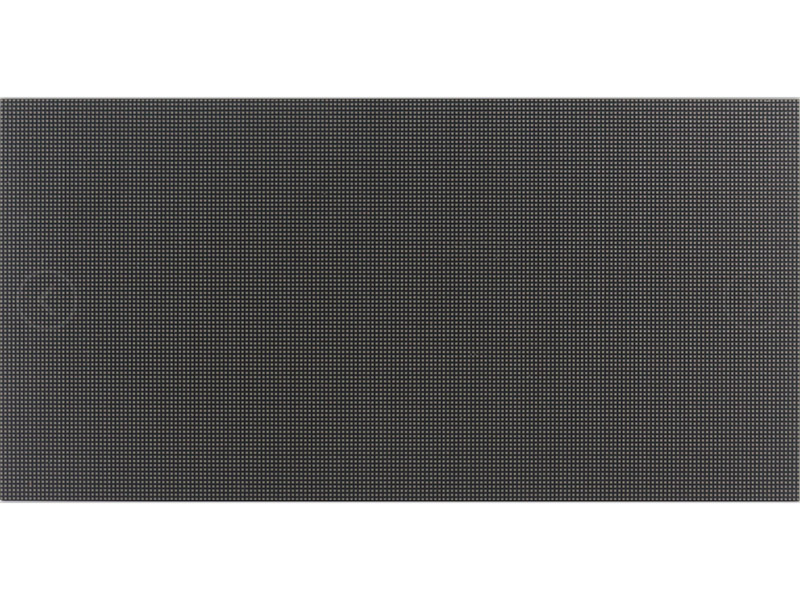

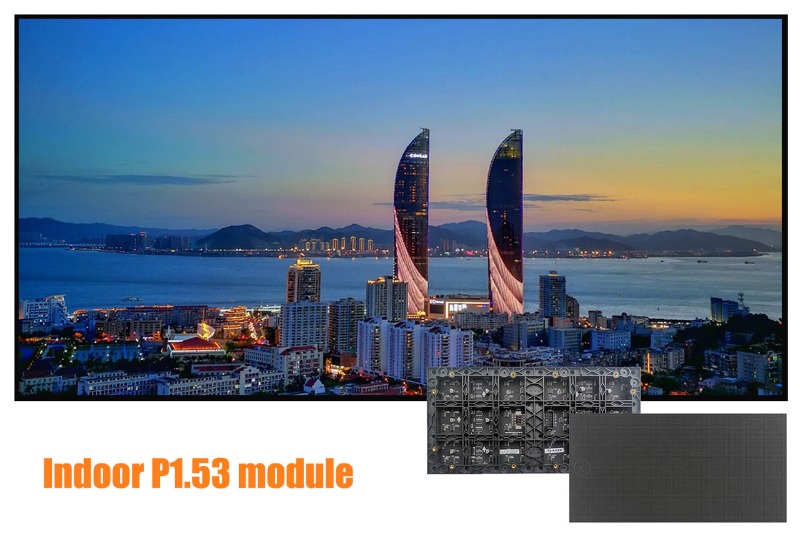

The SMD Indoor P1.53 Full-Color LED Module delivers high-resolution display performance in controlled settings. Featuring a 1.53 mm pixel pitch—the distance between adjacent pixel centers—it offers high pixel density for sharp, detailed visuals even at close to medium viewing distances. Ideal for professional environments that require clear imagery and seamless integration, it is commonly used in control rooms, broadcast studios, corporate lobbies, and premium retail spaces.
Brand :
HoozoeModel :
Indoor P1.53 SMD LED ModuleOrder(MOQ) :
50Payment :
TTProduct Origin :
ZhangzhouColor :
Full colorShipping Port :
Xiamen/ShenzhenLead Time :
10 daysWeight :
450g
Features
Pixel Pitch:
The "1.53" denotes a 1.53mm distance between pixel centers. This fine pitch supports high pixel density while balancing performance and cost for a wide range of professional indoor uses.
High Resolution & Detail:
The dense pixel arrangement enables the display to render high-resolution content with excellent clarity, suitable for detailed graphics, videos, and data visualization.
Optimal Viewing Distance:
It is designed for environments where viewers are at a close to moderate distance, ensuring a smooth, non-pixelated viewing experience even when approaching the screen.
Common Technology:
P1.53 displays typically utilize reliable SMD (Surface-Mount Device) packaging, which mounts LED chips directly onto the circuit board for consistent performance, good color mixing, and durability.
Typical Applications:

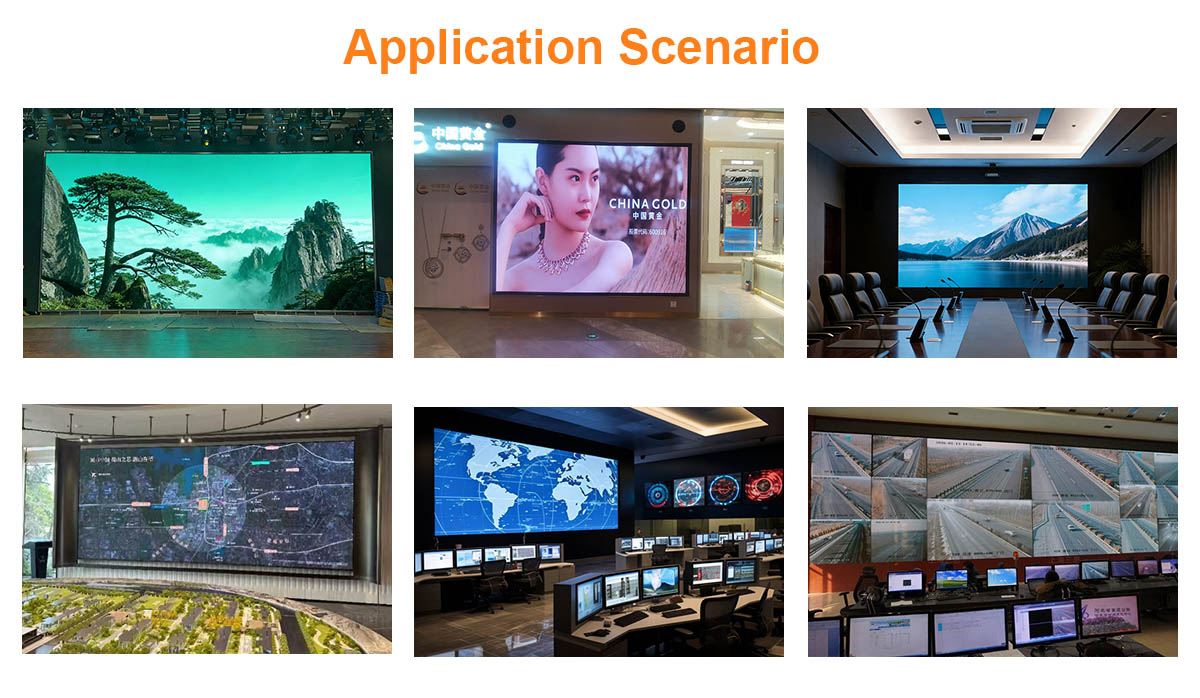

Due to its balance of resolution and practicality, it is widely adopted in professional and high-end settings such as corporate boardrooms, control rooms, broadcast studios, luxury retail stores, hotels, and high-impact digital signage installations.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 510 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥2.0m | |
|
Blind spot rate |
Less than 0.02% | |
| Brightness | > 600 cd/㎡ | |
| Average power consumption of the screen | 180-250 W/㎡ | |
| Horizontal viewing angle of screen | 140±10 degree | |
|
Vertical viewing angle of the screen |
140±10 degree | |
| Module |
Pixel Pitch |
1.5384 mm |
|
Pixel Density |
422533 Dots/㎡ | |
| Resolution | 208x104=21632 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/52 scan constant current drive | |
| Input voltage | 4.2-5 V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 450 g | |
| Power of unit module | <26 W | |
| Size (Long, Wide, and Thick) | 320*160*14.5（mm) | |
| Maximum current | <5.2 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
<6 pieces P1.5384 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
≥3840Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|

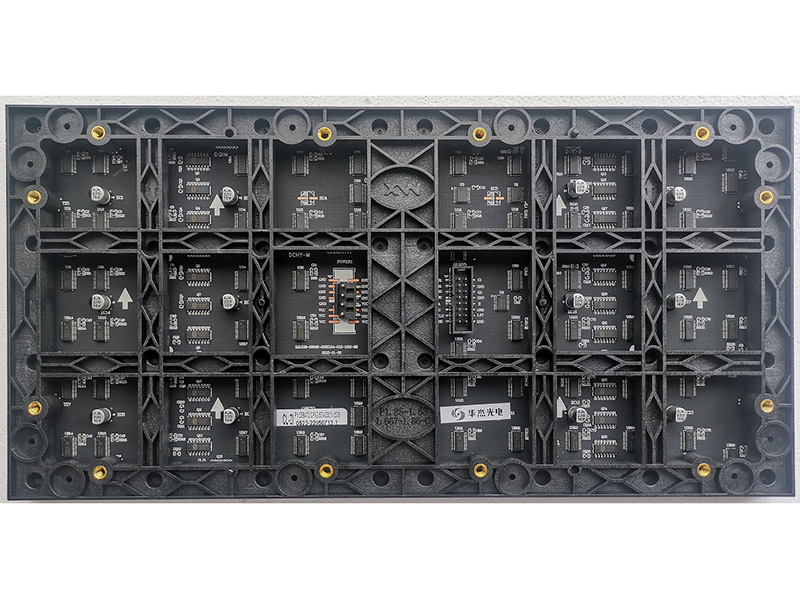

| Driver chip mode |
Buffer 74HC245, Row Tube 9736, PWM Constant Current IC |
|
