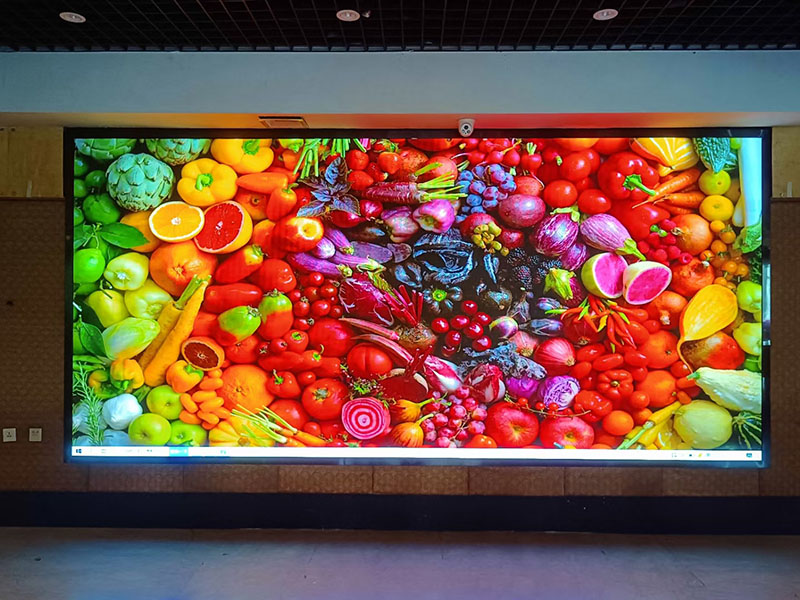

An indoor P1.25 LED display is a high-resolution indoor LED screen with a pixel pitch of 1.25mm, which refers to the distance between the centers of adjacent pixels. This fine pitch allows for an extremely dense arrangement of pixels, resulting in ultra-high-definition images with exceptional detail and clarity, making it ideal for close-up viewing in applications like control rooms, broadcast studios, and luxury retail spaces.
Brand :
HoozoeModel :
Indoor P1.25 SMD LED panelOrder(MOQ) :
40Payment :
TTProduct Origin :
ZhangzhouColor :
Full colorShipping Port :
Xiamen/ShenzhenLead Time :
10 daysWeight :

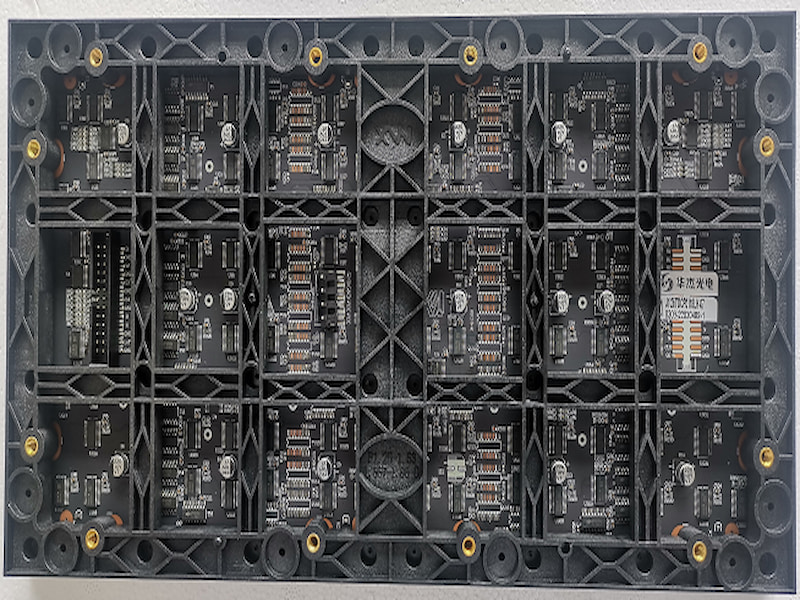

450gParameter of indoor P1.25 LED module
Key characteristics of the P1.25 LED display
Pixel Pitch: The "1.25" in P1.25 signifies a 1.25mm distance between pixel centers, which is a very small pitch, creating a high pixel density.
High Resolution: The small pixel pitch enables the display to show incredibly detailed images, making it suitable for applications where clarity and precision are paramount.
Optimal Viewing: It is designed for close-range viewing, where a standard outdoor display would appear pixelated.
Common Technologies: P1.25 displays often use SMD(Surface Mount Device) technology, which mounts the LED beads directly onto a circuit board for better performance.

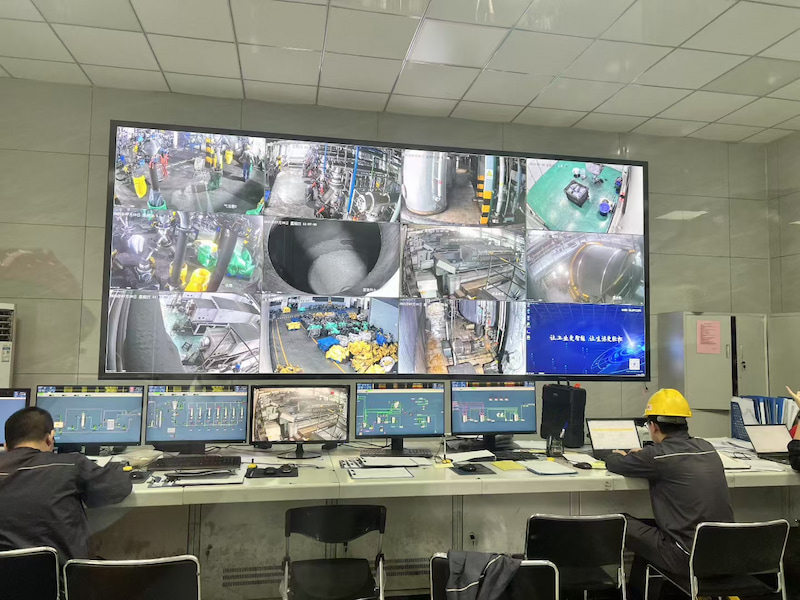

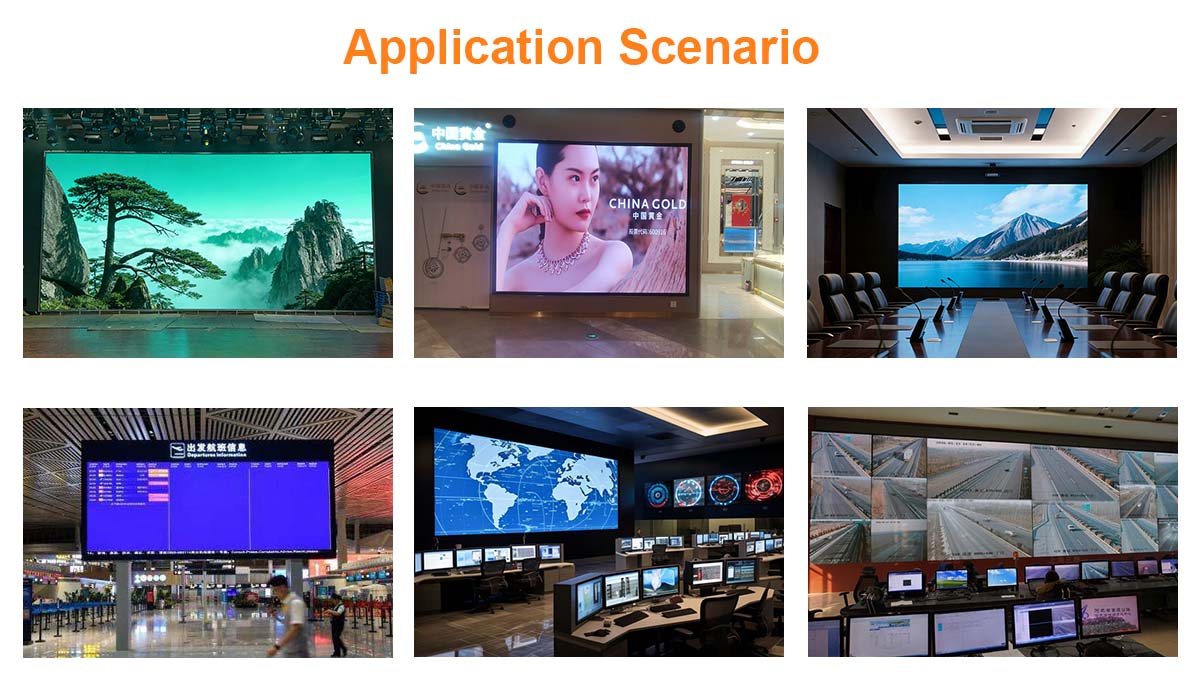

Applications: Due to its high resolution, it is used in professional indoor environments such as control rooms, command centers, conference centers, television studios, and virtual production sets.
|
|
Parameter Name |
Product Parameter |
|
Screen |
Maximum power consumption |
710 W/㎡ |
|
Usage environment |
Indoor |
|
|
Viewing distance |
≥2.0m |
|
|
Blind spot rate |
Less than 0.02% |
|
|
Brightness |
> 600 cd/㎡ |
|
|
Average power consumption of the screen |
210-350 W/㎡ |
|
|
Horizontal viewing angle of screen |
140±10 degree |
|
|
Vertical viewing angle of the screen |
120±10 degree |
|
|
Module |
Pixel Pitch |
1.25 mm |
|
Pixel Density |
640000 Dots/㎡ |
|
|
Resolution |
258x128=32768 Dots |
|
|
Structural characteristics |
Integrated light drive system |
|
|
Pixel composition |
1R1G1B |
|
|
Drive mode |
1/64 scan constant current drive |
|
|
Input voltage |
4.2-5 V |
|
Module |
Kit materials |
Polycarbonate PC material |
|
Weight |
450 g |
|
|
Power of unit module |
< 28 W |
|
|
Size (Long, Wide, and Thick) |
320*160*16.7（mm） |
|
|
Maximum current |
< 5.6 A |
|
|
Use 4.2V/5V switching power supply with load capacity |
<4 pieces P1.25 full-color unit boards |
|
|
System
|
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
≥ 3840Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
|
Driver chip model |
Interface: HUB320 Buffer 74HC245, Row Tube 5958/7559, PWM Constant Current IC |
|
Remark: 1.The above parameters are typical or recommended.
2.Product parameters or configuration adjustments without notice.
3.Customized products, please confirm the parameters with our company.
