Key Applications:
It is widely used in Digital Billboards: Along highways and in city centers;Sports Venues: Stadium scoreboards and perimeter advertising;Retail & Entertainment: On building facades and in amusement parks;Public Transport: Information displays at airports and train stations;Corporate: Building-mounted logos and announcements.
Brand :
HoozoeModel :
Indoor LED display modulesOrder(MOQ) :
80 pcsPayment :
TTProduct Origin :
Zhangzhou FujianShipping Port :
XiamenLead Time :
7-15 DaysPixel Pitch (mm) : P2.0、P2.5、P3.0、P3.076、P4.0、P5.0、P6.0、P8.0、P10
| Parameter | Outdoor Full Color Display Module | ||||||||||
| Item | P2.0 | P2.5 | P3 | P3.077 | P4 | P5 | P6 | P8 | P10 | P10 | P10 |
| Module size(mm) | 320x160 | 320X160 | 192x192 | 320x160 | 320X160 | 320x160 | 192x192 | 320x160 | 320x160 | 320x160 | 320x160 |
| Pixel Pitch(mm) | 2 | 2.50 | 3.00 | 3.077 | 4.00 | 5.00 | 6.00 | 8.00 | 10.00 | 10.00 | 10.00 |
| Dots | 160X80 | 128X64 | 64X64 | 104x52 | 80X40 | 64X32 | 32X32 | 40x20 | 32X16 | 32X16 | 32X16 |
| SMD | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1921 | SMD1921 | SMD1921 | SMD2525 | SMD3535 | SMD3535 | SMD1921 |
| Scan | 1/20 | 1/16 | 1/16 | 1/13 | 1/10 | 1/8 | 1/8 | 1/5 | 1/2 | 1/4 | 1/8 |
| Pixel Density(Dots/㎡) | 250000 | 160000 | 111111 | 105620 | 62500 | 40000 | 27777 | 15625 | 10000 | 10000 | 10000 |
| Brightness(cd/㎡) | 4500 | 4500 | 5000 | 4500 | 4500 | 4500 | 3500 | 3000 | 5500-7000 | 3500 | 1800 |
| Weight(g) | 380±5 | 507±5 | 342±5 | 460±5 | 500±5 | 550±5 | 280±5 | 500±5 | 474±5 | 436±5 | 320±5 |
| Color temperture(k) |
3000-15960 Adjustable |
||||||||||
| Refresh Rate(Hz) | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
| Warranty |
1 year |
||||||||||
72+ Hours Aging Tests
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability the indoor LED display modules and ensure the LED modules without broken leds
Various Pixel Pitch Avaliable

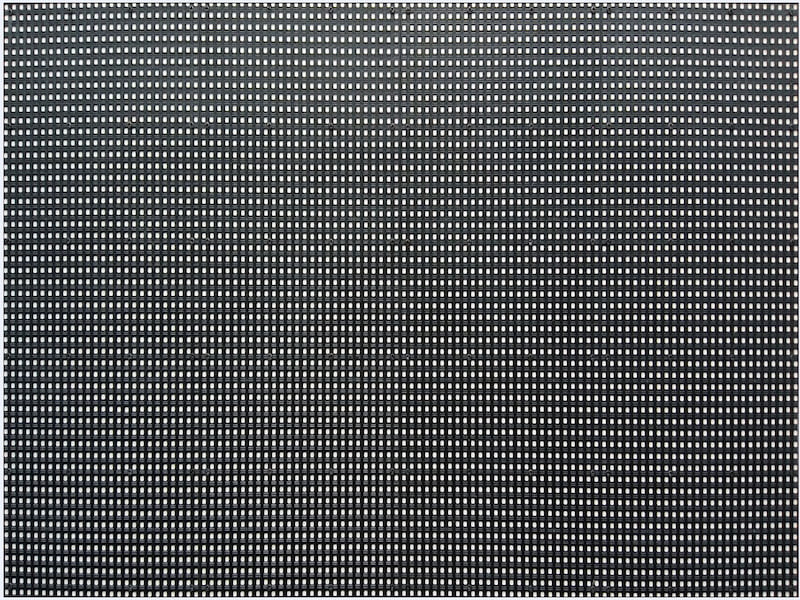

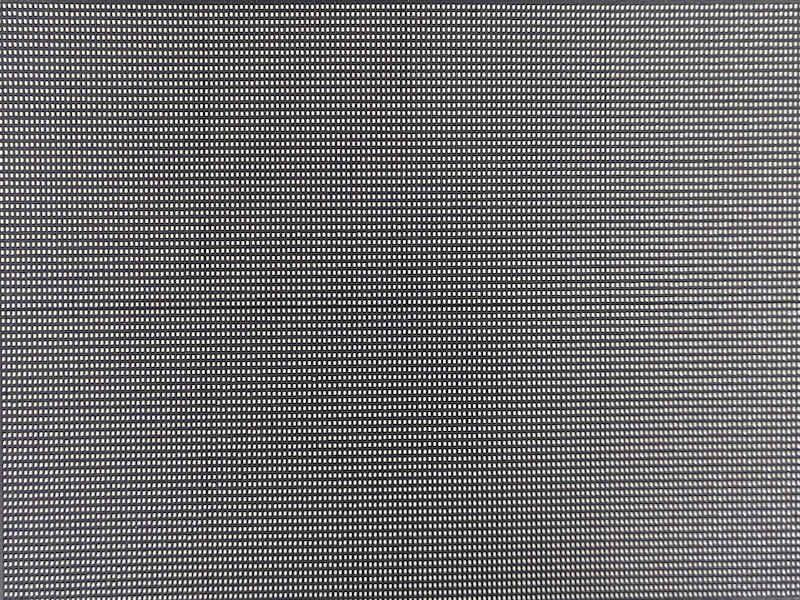

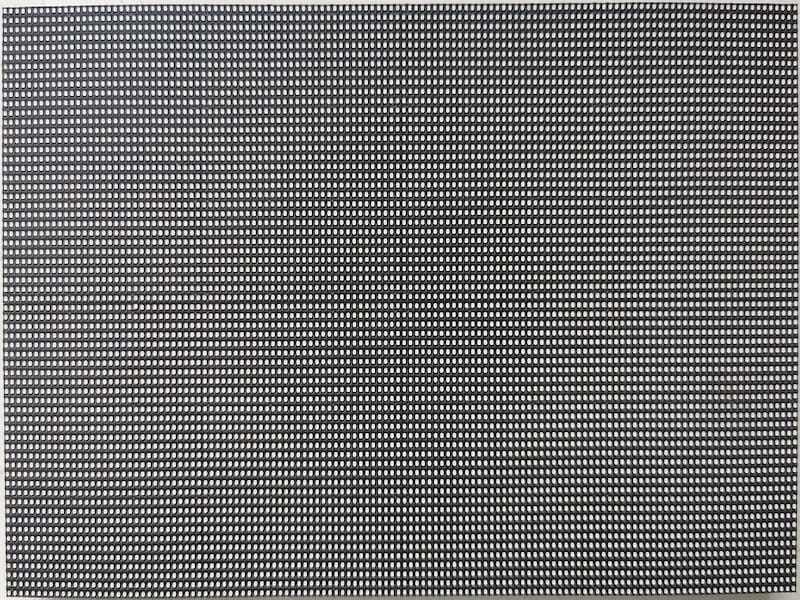

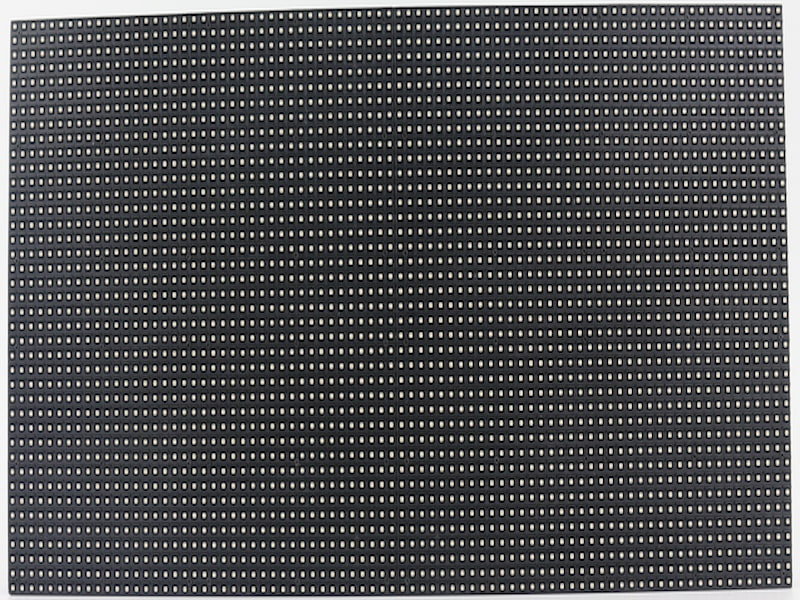

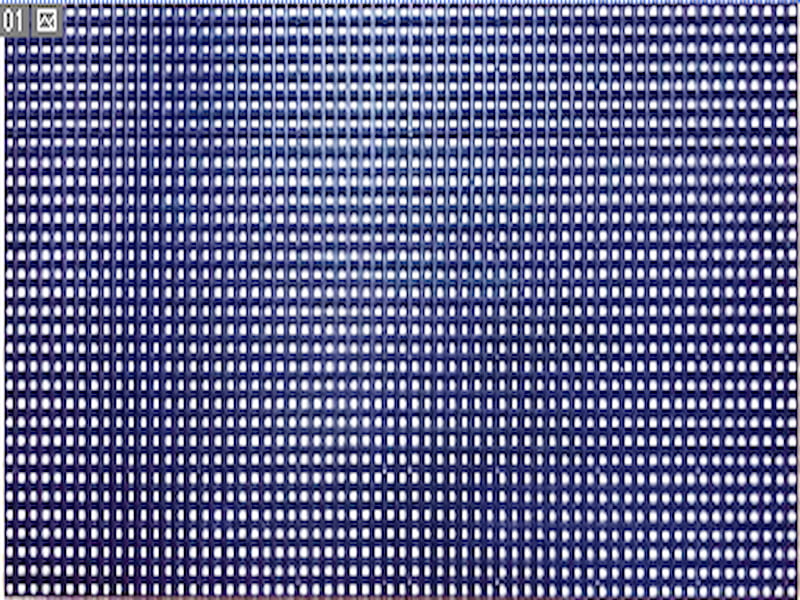

Outdoor LED display Panel has all pixel available from P2.0、P2.5、P3.0、P3.076、P4.0、P5.0、P6.0、P8.0、P10.

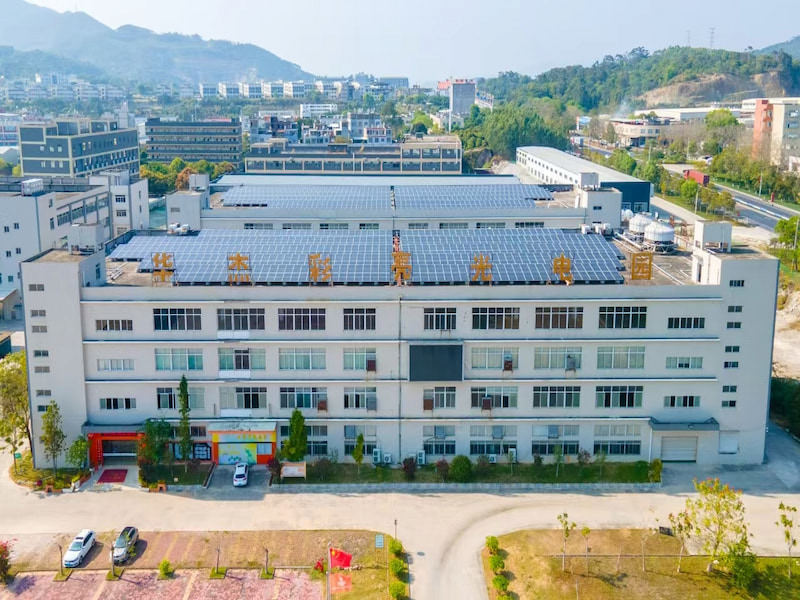

Self- owned industrial park

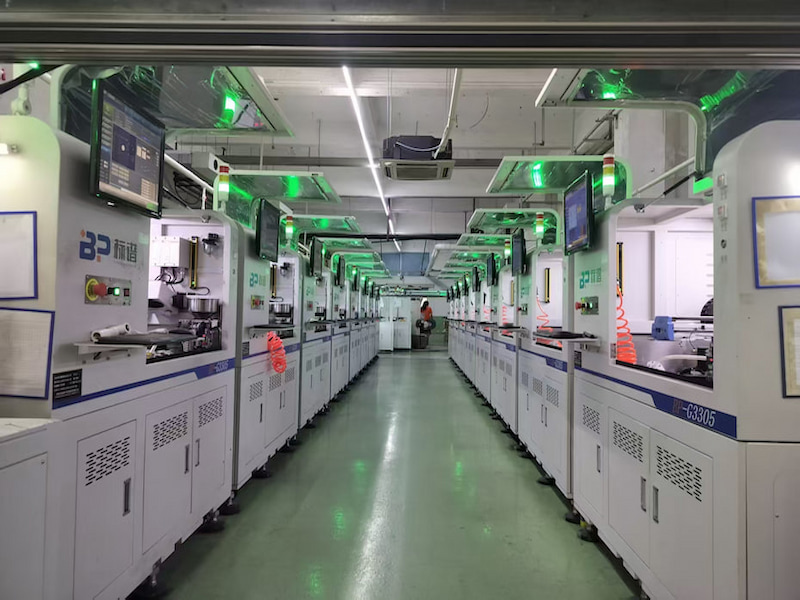

Fujian Hoozoe Optoelectronic Co.,ltd, which specialized in full range LED display module producing and solutions supply with 15 years, self-owned industrial park and automatic production lines help cost and production time saving.
Our Service
Supply OEM & ODM service; 7x24 online service, every year organize technical team global inspection to help to solve problems.
The Advantage of the Outdoor Full Color Display Module
1. Superior Brightness for Daylight Visibility
High Luminance Output: This is the most critical advantage. Outdoor modules are equipped with high-brightness LEDs,this intense brightness ensures that content remains vibrant, clear, and visible even under direct sunlight, overcoming glare and ambient light.
Automatic Brightness Adjustment: Most modern outdoor modules include light sensors that automatically adjust the screen's brightness based on ambient light conditions. This ensures optimal visibility 24/7—extremely bright during the day and appropriately dimmed at night to save energy and avoid being a nuisance.
2. Exceptional Durability and Weather Resistance
High IP Rating: Outdoor modules have a high Ingress Protection (IP) rating, such as IP65. This means they are fully sealed and certified to be:
Dust-tight (6x): Preventing harmful dust particles from entering.
Water-resistant (5x-7x): Protected against low-pressure water jets (IP65) or even temporary immersion (IP67). This makes them resistant to rain, snow, humidity, and sleet.
Robust Construction: They are built with materials designed to withstand wide temperature fluctuations (from freezing cold to extreme heat), UV radiation (which can cause fading), corrosion, and high winds. The cabinet housing the modules is often made of heavy-duty, rust-proof aluminum or similar durable materials.
Impact Resistance: The LEDs and components are protected to endure vibrations and occasional impacts from weather events like hail.
3. Long-Range Visibility and Large Format
Optimal Pixel Pitch: Outdoor displays have a larger pixel pitch (P2,P2.5,P3, P4, P5, P6, P8, P10) compared to indoor models. This is ideal for viewing from greater distances, such as from across a street or a highway. The content remains legible and effective without the need for (and cost of) an excessively high resolution.
Massive Scalability: Like indoor modules, they are modular. This allows for the creation of massive, billboard-sized screens that can dominate a cityscape and capture the attention of a vast audience.
4. Reliability for Continuous Operation
24/7 Operation: Outdoor displays are designed for uninterrupted, continuous operation. They are engineered with robust power supplies, advanced cooling systems (often including fans, air conditioning, or heat sinks), and components rated for long-term use in demanding conditions.
High Stability: The systems are built to be highly stable, minimizing downtime and ensuring the display is always operational, which is crucial for advertising and public information applications.
5. Powerful Advertising and Communication Impact
Unmissable Advertising: Their sheer size and brightness make them the most impactful form of out-of-home (OOH) advertising. They command attention in high-traffic areas like highways, city squares, and sports venues.
Public Information: They are invaluable for broadcasting urgent public announcements, traffic alerts, emergency instructions, and event information to a large population outdoors.
