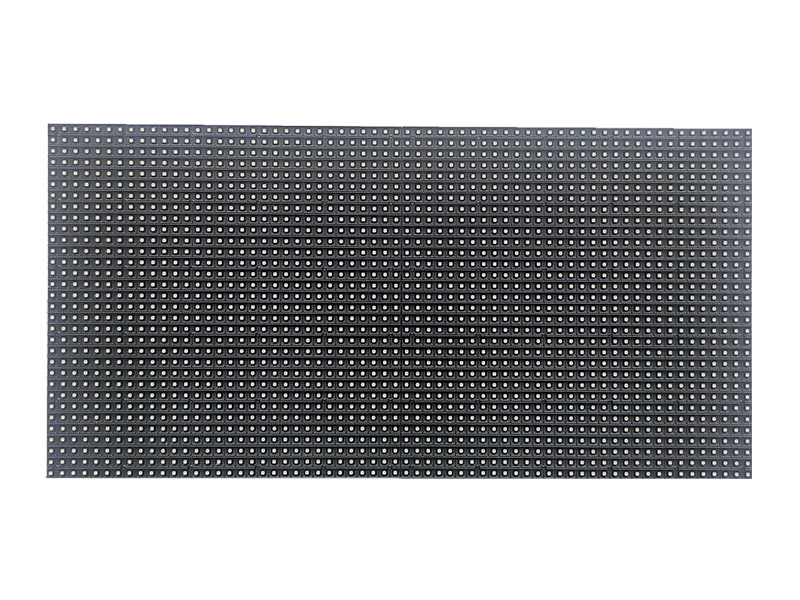

Outdoor P5 full-color LED module is a cost-effective and highly reliable display solution designed for large-scale, long-distance outdoor applications. With a 5mm pixel pitch, it delivers clear visuals at extended viewing ranges, making it ideal for highway billboards, stadiums, port terminals, and other remote-viewing installations. The module complies with IP65 protection standards and features ultra-high brightness (≥6000 cd/m²), ensuring excellent visibility and color performance even under strong ambient light.
Brand :
HoozoeModel :
SMD Outdoor P5 LED Display Full Color ModuleOrder(MOQ) :
50Payment :
TTProduct Origin :
ZhangzhouColor :
Full colorShipping Port :
Xiamen/ShenzhenLead Time :
10 daysWeight :
430gFeatures
Pixel Pitch
Featuring a 5.0 mm pixel pitch, it is optimized for viewing distances beyond 12 meters. It maintains clear visibility while significantly reducing cost per unit area, making it a cost-effective choice for large outdoor screens.
High Resolution & Detail
With a standard brightness of ≥4500 nits and support for 0–100% intelligent dimming, it uses outdoor-specific LEDs to achieve over 92% color gamut. Combined with a refresh rate of ≥3840 Hz and 16-bit grayscale, it delivers vivid, flicker-free images even in bright ambient light.
Reliable Technology & Environmental Adaptability
Rated IP65 for complete dust and water protection, it adopts potting or molding sealing processes. The housing is made of die-cast aluminum or galvanized steel, offering wind resistance up to Level 10 and an operating temperature range of -30℃ to +60℃, suitable for various climate conditions.
Maintenance & Stability
The modular design allows front or rear maintenance, with single-module replacement in under 3 minutes. It supports N+1 power backup and signal redundancy, with an MTBF (Mean Time Between Failures) of ≥100,000 hours.
Typical Applications
Ideal for long-distance viewing scenarios such as highway billboards, rooftop displays, stadium screens, and other large-scale outdoor information display projects.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 710 W/㎡ |
|
Usage environment |
Outdoor | |
|
Viewing distance |
≥5m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | > 4500 cd/㎡ | |
| Average power consumption of the screen | 240 W/㎡ | |
| Horizontal viewing angle of screen | 120±20 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
5 mm |
|
Pixel Density |
40000 Dots/㎡ | |
| Resolution | 64x32=2048 Dots | |

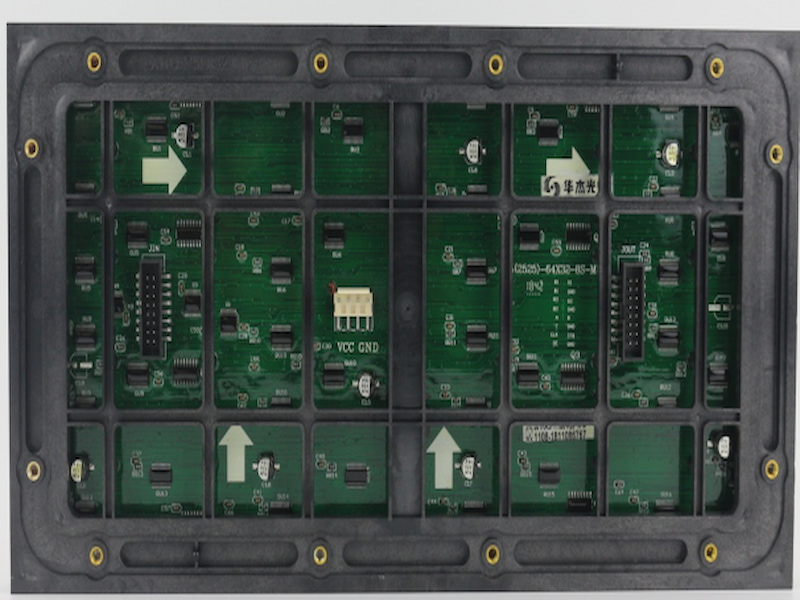

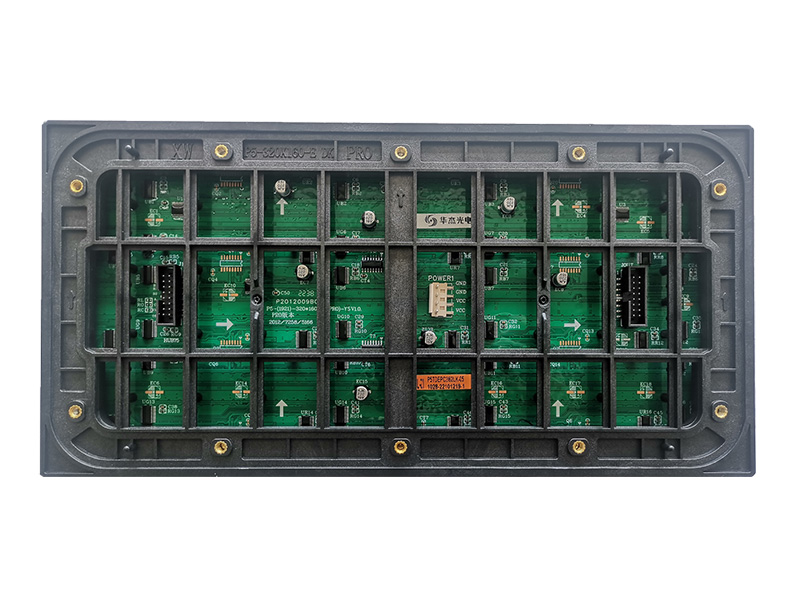

| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/8 scan constant current drive | |
| Input voltage | 4.5-5V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 430 g | |
| Power of unit module | 36.2 W | |
| Size (Long, Wide, and Thick) | 320*160*17.6（mm) | |
| Maximum current | 7.24 A | |
|
Number of modules supported by 200w power supply |
<4 pieces | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
Dual latch with 128-point load >1920Hz PWM with 128-point load >3840Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | 74HC245, Decoder 74HC138, Dual Latch Constant Current IC, Line Driver 7258 | |

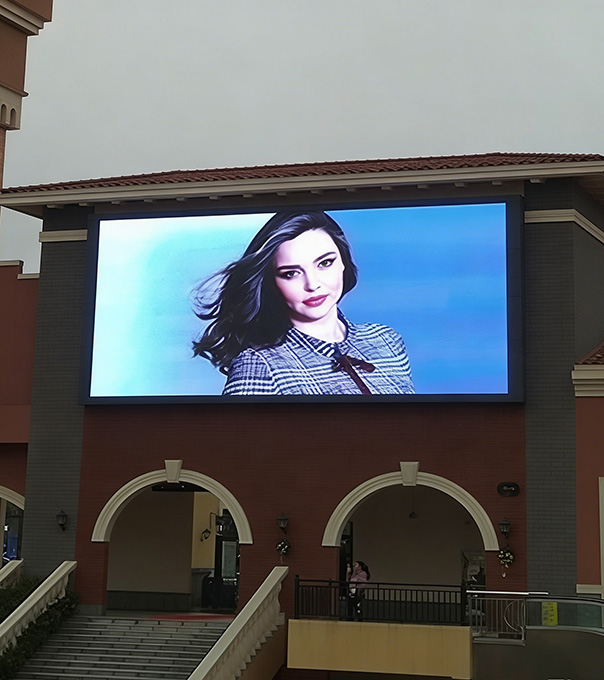

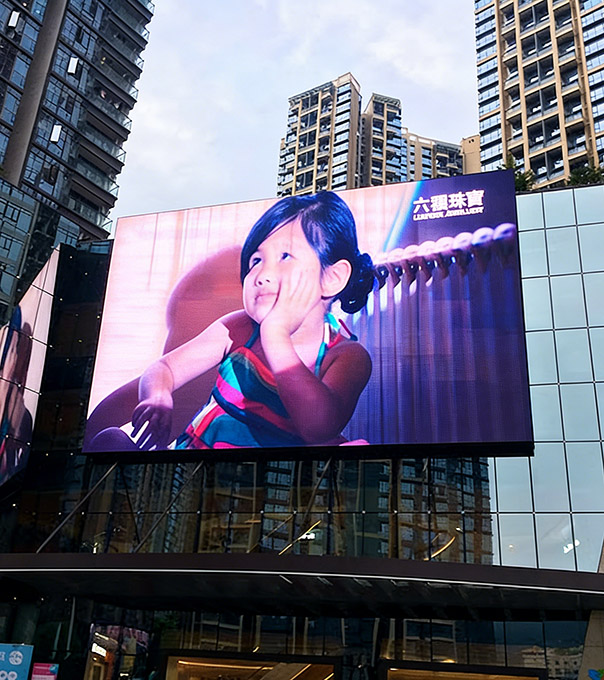

Applications Scenario
