SMD Outdoor P4 LED Display Full Color Module

Features

Pixel Pitch:
Featuring a 4.0 mm pixel pitch, this conventional outdoor-density design ensures clear, grain-free viewing at distances beyond 10 meters, while delivering excellent cost-effectiveness for large-area projects.

High Brightness & Image Quality:
With standard outdoor high brightness—typical value ≥5500 nits—and support for 0-100% intelligent dimming, it maintains vivid and eye-catching visuals under any lighting conditions. A high refresh rate (≥3840 Hz) effectively eliminates scan lines during capture, while high grayscale technology enables smooth and natural color transitions.

Reliability & Protection:
Fully compliant with IP65 rating for complete protection against dust and water jets, it performs reliably in harsh weather such as rain, snow, and sandstorms. Built with UV-resistant outdoor-specific LEDs and masks, it operates across a wide temperature range of -30℃ to +60℃ and offers moisture and salt spray resistance. The high-strength die-cast aluminum housing ensures robust structure and efficient heat dissipation, guaranteeing long-term stable operation.

Viewing & Consistency:
Horizontal and vertical viewing angles both reach ≥140° with no color shift from any direction. Each unit undergoes point-by-point calibration before leaving the factory, ensuring high uniformity in brightness and color across the entire display.

Typical Applications:
Ideal for outdoor billboards, stadium screens, transportation hubs, building facades, stage events, and other public venues that require long viewing distances, environmental adaptability, and high durability.

Parameter

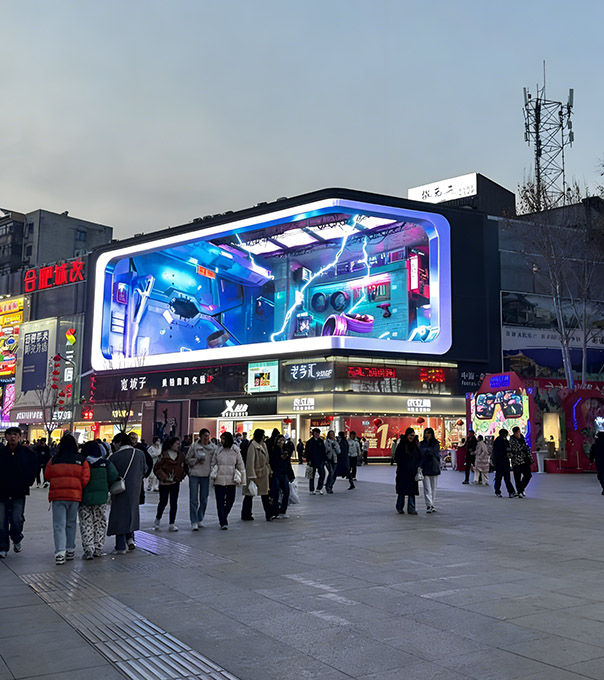

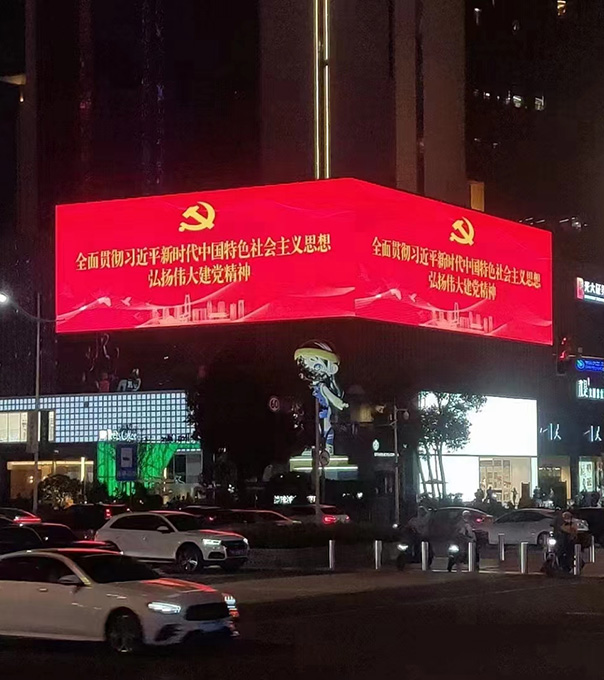

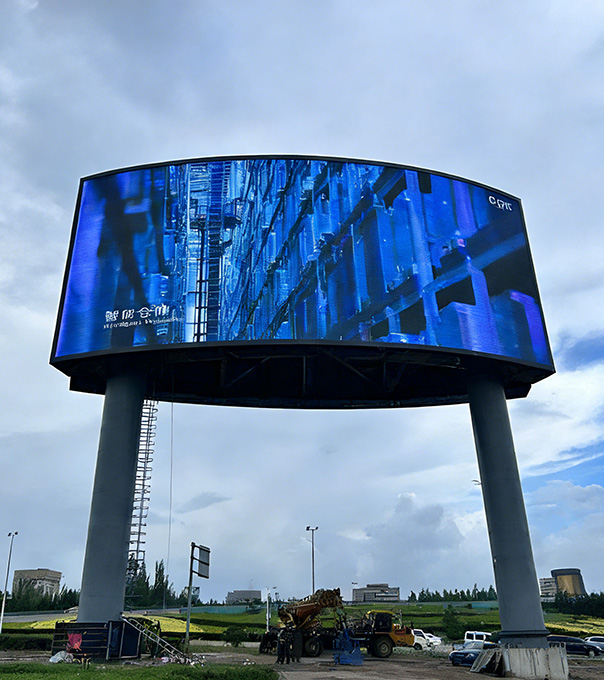

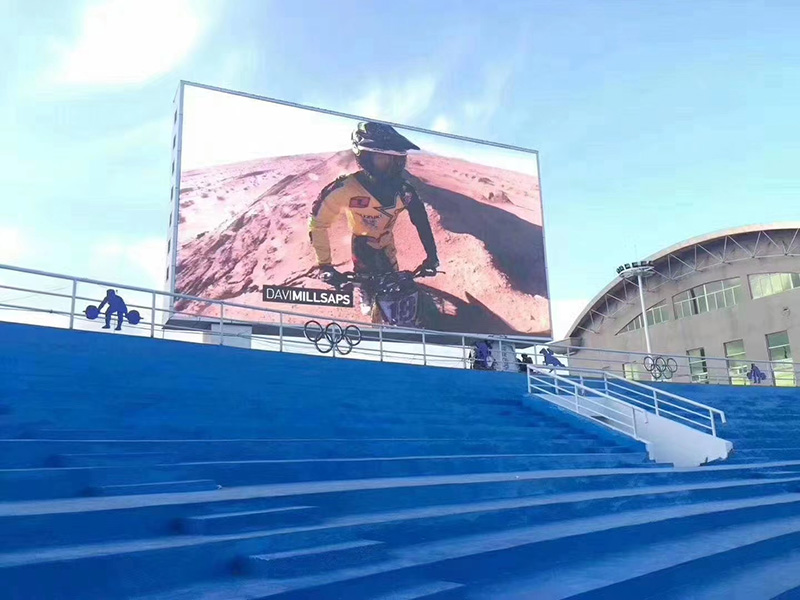

Applications Scenario
