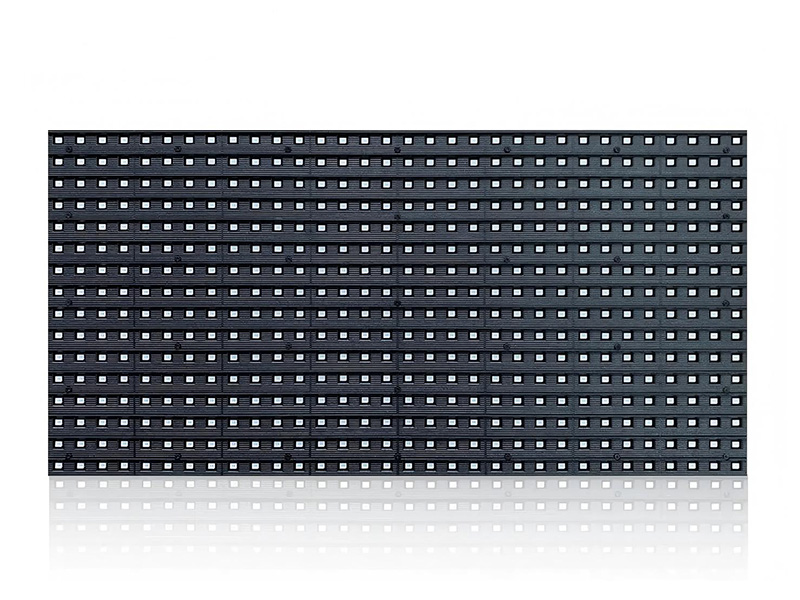

A reliable and high-visibility monochrome display module engineered for clear information delivery in semi-outdoor environments. With a 10mm pixel pitch and dedicated high-brightness white LEDs, it offers excellent readability and enhanced environmental durability for sheltered outdoor applications.
Brand :
HoozoeModel :
Semi-Outdoor P10 SMD Monochrome LED White ModuleOrder(MOQ) :
80 pcsPayment :
TTProduct Origin :
ZhangzhouColor :
WhiteShipping Port :
XiamenLead Time :
7-15 daysWeight :
200gFeatures
Long-Distance Clarity: The 10mm pixel pitch ensures sharp, legible display of text, numbers, and basic graphics at viewing distances typically over 15 meters.
High-Brightness White Output: Utilizes dedicated white SMD LEDs to deliver bright, neutral-white illumination, providing high contrast and excellent visibility for information messaging under various ambient light conditions.
Enhanced Environmental Suitability: Designed with improved sealing and protective materials compared to standard indoor modules, offering better resistance to humidity, dust, and temperature fluctuations encountered in covered outdoor spaces.
Stable & Energy-Efficient Operation: Built for long-term reliability with a focus on consistent performance and optimized power consumption, ensuring dependable operation with minimal maintenance needs.

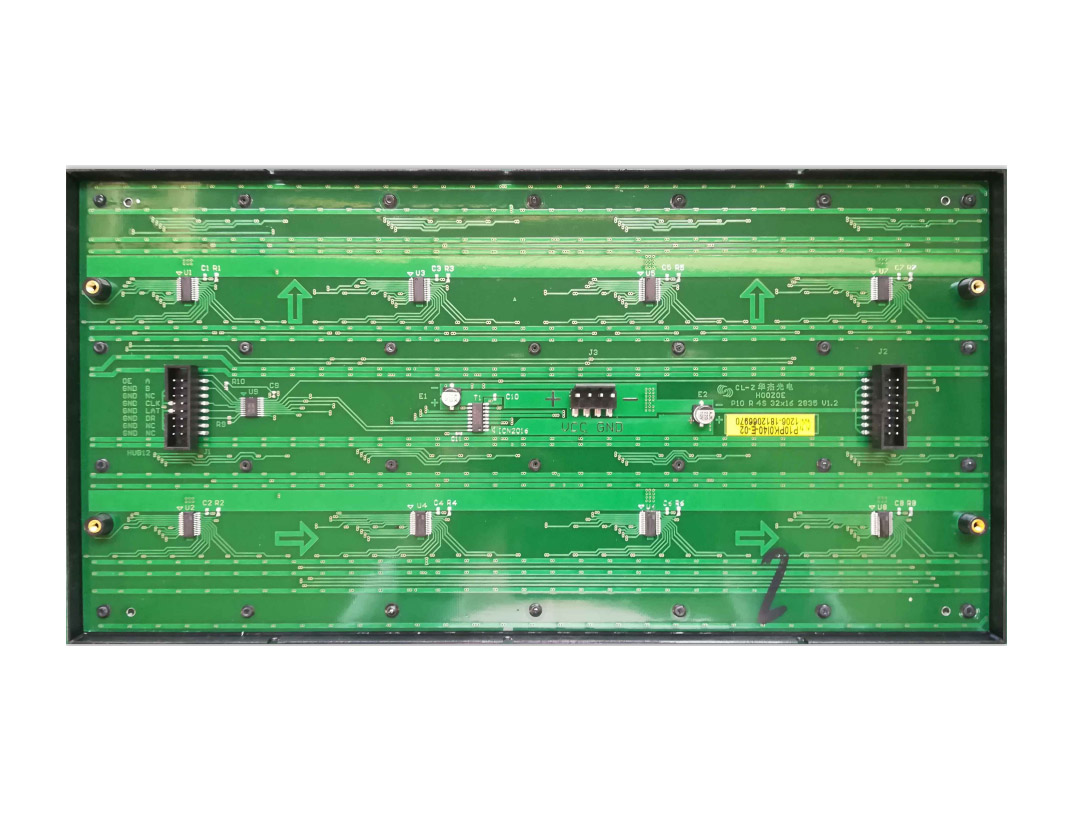

Modular & Serviceable Design: Features a standardized modular structure for easy panel assembly and configuration. Supports straightforward front-access maintenance and module replacement, simplifying installation and upkeep.
Ideal for: Covered transportation information displays (bus/train schedules), indoor parking guidance and availability systems, sheltered stadium or arena fascia boards, shopping mall atrium directional signage, and other semi-outdoor applications requiring a clear, bright, and durable white-on-black information display.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 350 W/㎡ |
|
Usage environment |
Outdoor | |
|
Viewing distance |
≥10m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | ≥ 2200 cd/㎡ | |
| Average power consumption of the screen | 150-200 W/㎡ | |
| Horizontal viewing angle of screen | 80±15 degree | |
|
Vertical viewing angle of the screen |
45±10 degree | |
| Module |
Pixel Pitch |
10mm |
|
Pixel Density |
10000 Dots/㎡ | |
| Resolution | 32x16=512 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R | |
| Drive mode | 1/4 scan constant current drive | |
| Input voltage | 4.5-5.5 V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 200 g | |
| Power of unit module | 15 W | |
| Size (Long, Wide, and Thick) | 320*160*6.3（mm) | |
| Maximum current | 3 A | |
|
Number of modules supported by 200w power supply |
<15 pieces P10 single white unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
≧ 80HZ | |
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | ||
Core Advantages of Hoozoe Semi-Outdoor P10 SMD Monochrome LED Module
SMD Technology for Stable Performance
Utilizing Surface-Mount Device (SMD) LEDs, these modules offer a compact, streamlined design with strong solder joint reliability and consistent light output. The encapsulated LED structure enhances resistance to environmental factors while maintaining stable operation in semi-outdoor conditions.
Clear Monochrome Display
Available in single-color options such as red and white, these modules deliver focused, high-contrast visibility ideal for text, numbers, symbols, and basic graphics—ensuring straightforward and effective communication.
High Brightness for Daylight Visibility
Engineered with high-intensity SMD LEDs, the module provides strong luminance to ensure readability in well-lit outdoor environments and under ambient daylight.
Semi-Outdoor Durability
Designed with robust protection against dust, moisture, and weather exposure, suitable for covered outdoor or semi-sheltered installations. Built to operate reliably across varying temperatures and mild environmental conditions.
Long Lifespan & Low Maintenance
Designed for extended continuous use with a typical lifespan of 50,000–80,000 hours, reducing the need for frequent maintenance and delivering reliable long-term performance in semi-outdoor applications.

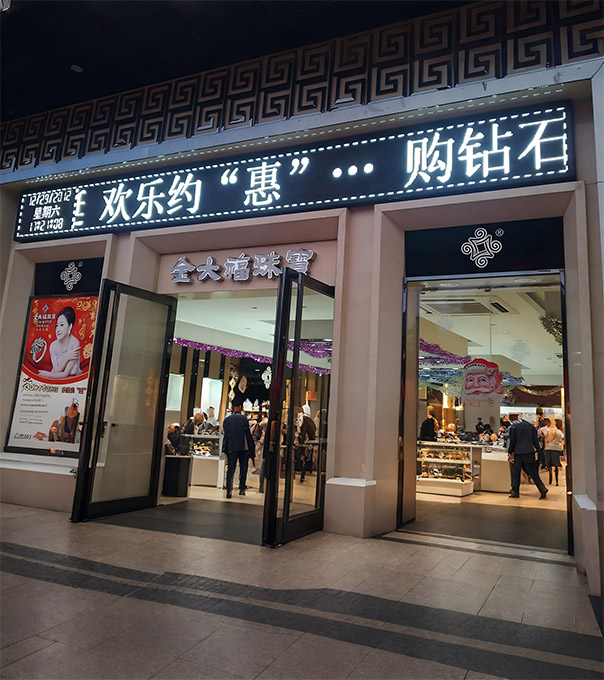

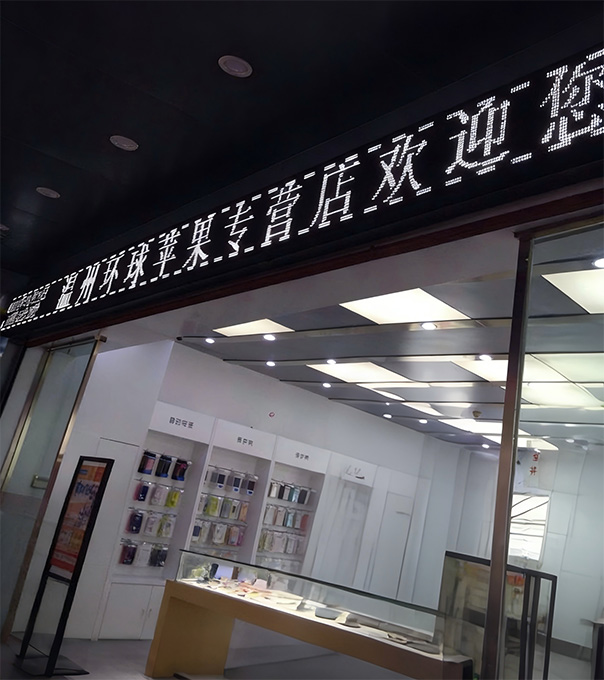

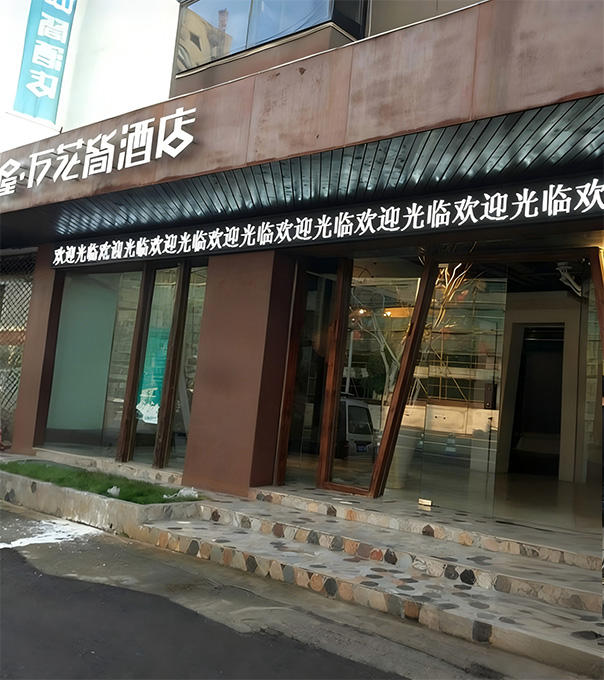

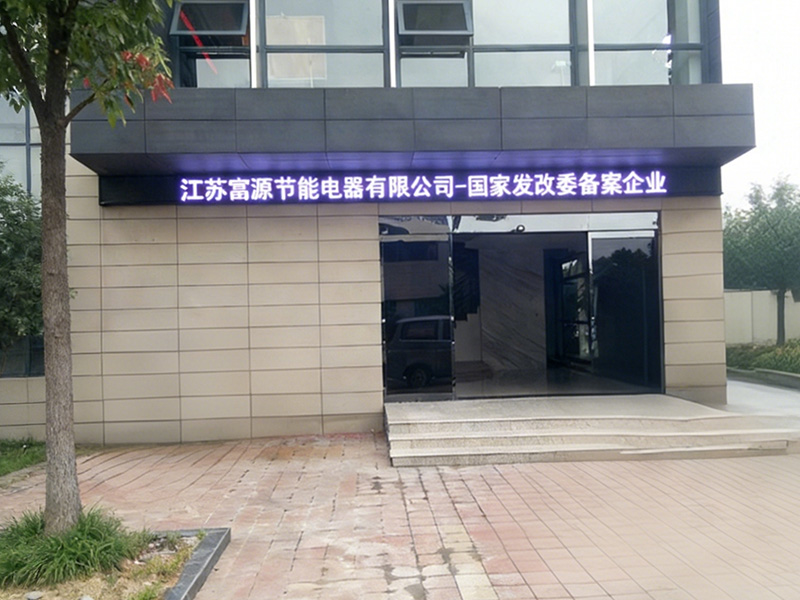

Applications Scenario
