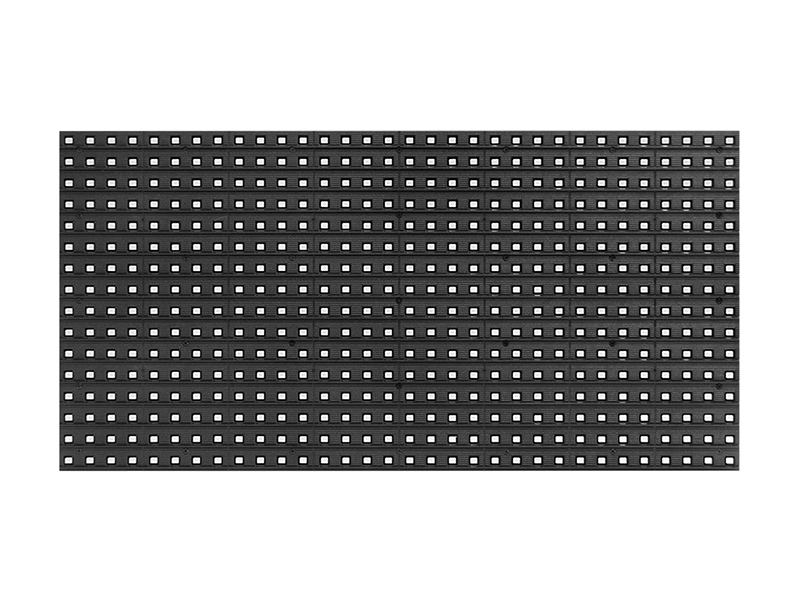

A durable and cost-effective monochrome display module specifically designed for reliable information display in semi-outdoor environments. Featuring a 10mm pixel pitch and high-intensity red LEDs, it delivers clear, eye-catching content with enhanced environmental protection for areas sheltered from direct rainfall.
Brand :
HoozoeModel :
Semi-Outdoor P10 SMD Monochrome LED Red ModuleOrder(MOQ) :
80 pcsPayment :
TTProduct Origin :
ZhangzhouColor :
RedShipping Port :
XiamenLead Time :
7-15 daysWeight :
200Features
Optimized for Readability: The 10mm pixel pitch ensures crisp text and simple graphics are clearly legible at viewing distances beyond 15 meters, making it ideal for public information dissemination.
High-Contrast Red Display: Utilizes dedicated red SMD LEDs to produce bright, high-contrast monochrome content, offering excellent visibility and lower power consumption for static or scrolling information.
Semi-Outdoor Protection: Designed with a higher level of environmental resistance than standard indoor modules, offering improved protection against moisture, dust, and ambient humidity commonly found in covered outdoor areas.
Stable & Reliable Operation: Built with a robust casing and stable component packaging to ensure consistent performance and long service life in variable temperature and humidity conditions.
Easy Integration & Maintenance: Features a modular design for straightforward assembly into larger display panels and supports simple module replacement, facilitating easy installation and low-maintenance operation.
Ideal for: Bus and train station sheltered information boards, covered parking guidance systems, stadium under-eave scoreboards, shopping mall entrance signage, and other semi-outdoor applications requiring clear, reliable, and long-distance single-color messaging.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 350 W/㎡ |
|
Usage environment |
Outdoor | |
|
Viewing distance |
≥10m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | ≥ 700 cd/㎡ | |
| Average power consumption of the screen | 150-200 W/㎡ | |
| Horizontal viewing angle of screen | 85±15 degree | |
|
Vertical viewing angle of the screen |
45±10 degree | |
| Module |
Pixel Pitch |
10mm |
|
Pixel Density |
10000 Dots/㎡ | |
| Resolution | 32x16=512 Dots | |

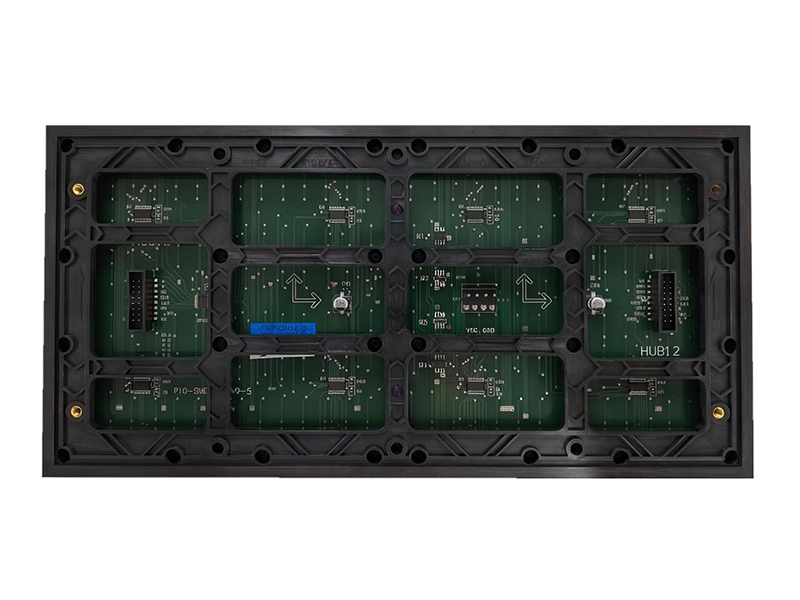

| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R | |
| Drive mode | 1/4 scan constant current drive | |
| Input voltage | 4.5-5.5 V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 200 g | |
| Power of unit module | 15 W | |
| Size (Long, Wide, and Thick) | 320*160*15（mm) | |
| Maximum current | 3 A | |
|
Number of modules supported by 200w power supply |
<15 pieces P10 monochrome unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
≧ 80HZ | |
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | ||
Core Advantages of Hoozoe Semi-Outdoor P10 SMD Monochrome LED Module
SMD Technology for Stable Performance
Utilizing Surface-Mount Device (SMD) LEDs, these modules offer a compact, streamlined design with strong solder joint reliability and consistent light output. The encapsulated LED structure enhances resistance to environmental factors while maintaining stable operation in semi-outdoor conditions.
Clear Monochrome Display
Available in single-color options such as red and white, these modules deliver focused, high-contrast visibility ideal for text, numbers, symbols, and basic graphics—ensuring straightforward and effective communication.
High Brightness for Daylight Visibility
Engineered with high-intensity SMD LEDs, the module provides strong luminance to ensure readability in well-lit outdoor environments and under ambient daylight.
Semi-Outdoor Durability
Designed with robust protection against dust, moisture, and weather exposure, suitable for covered outdoor or semi-sheltered installations. Built to operate reliably across varying temperatures and mild environmental conditions.
Long Lifespan & Low Maintenance
Designed for extended continuous use with a typical lifespan of 50,000–80,000 hours, reducing the need for frequent maintenance and delivering reliable long-term performance in semi-outdoor applications.

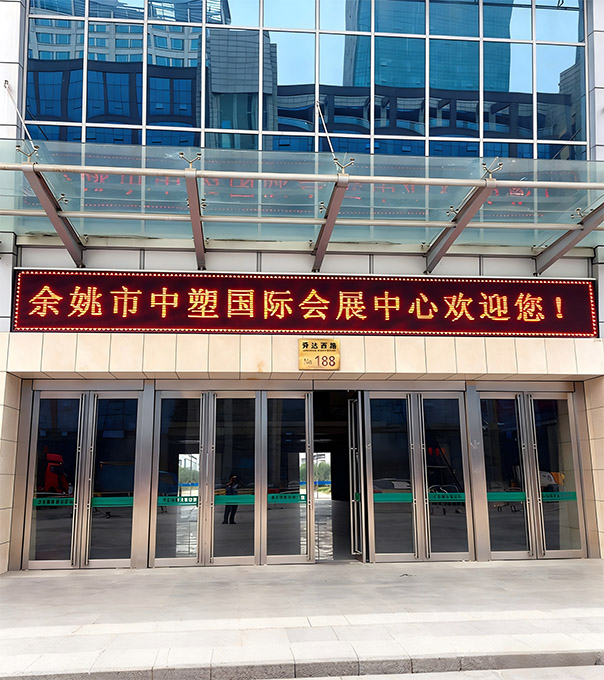

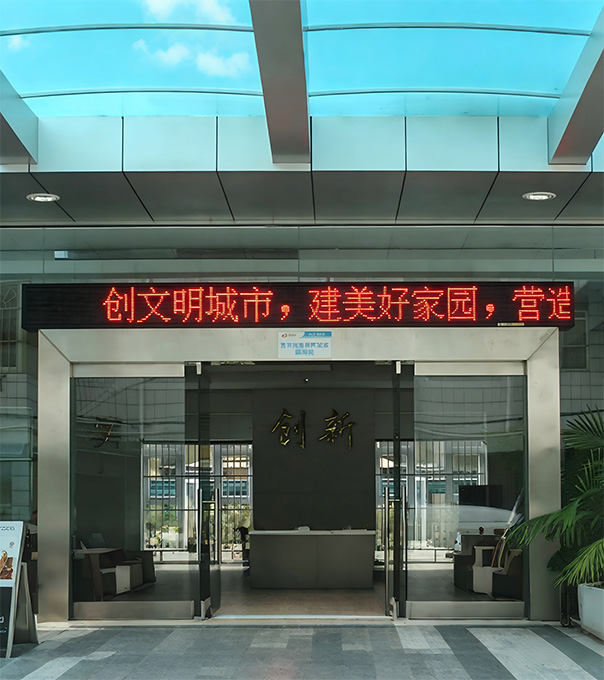

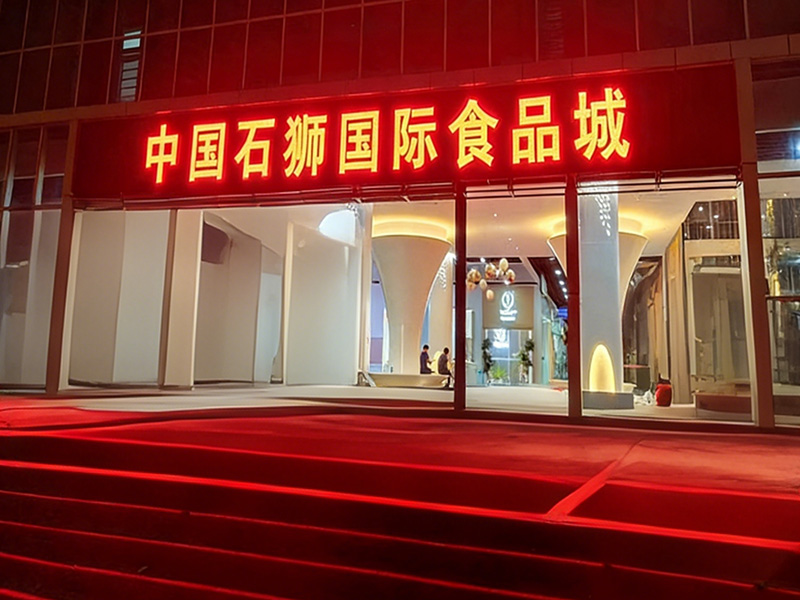

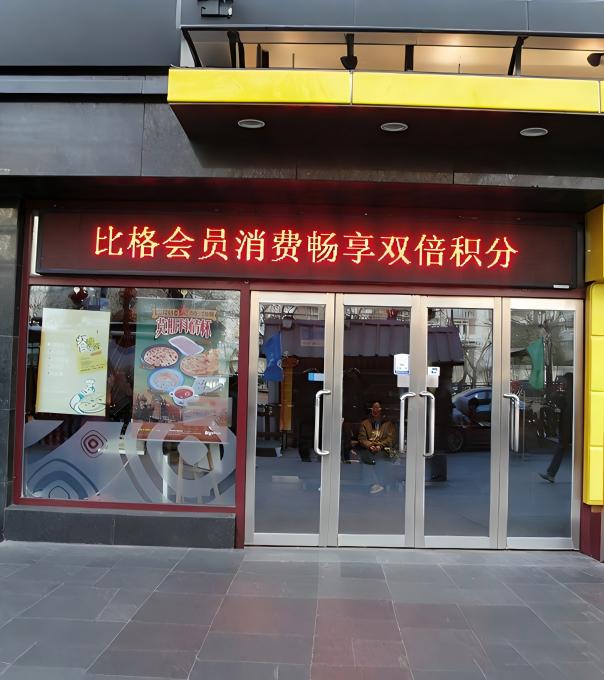

Applications Scenario
