It is widely used in Digital Signage,Traffic Displays,Industrial Displays,Concert Backdrops.
Brand :
HoozoeModel :
DIP MonochromeOrder(MOQ) :
80 pcsPayment :
TTProduct Origin :
Zhangzhou FujianColor :
Red /White /Green/Yellow/BlueShipping Port :
XiamenLead Time :
7-15 daysWeight :
400gFeatures

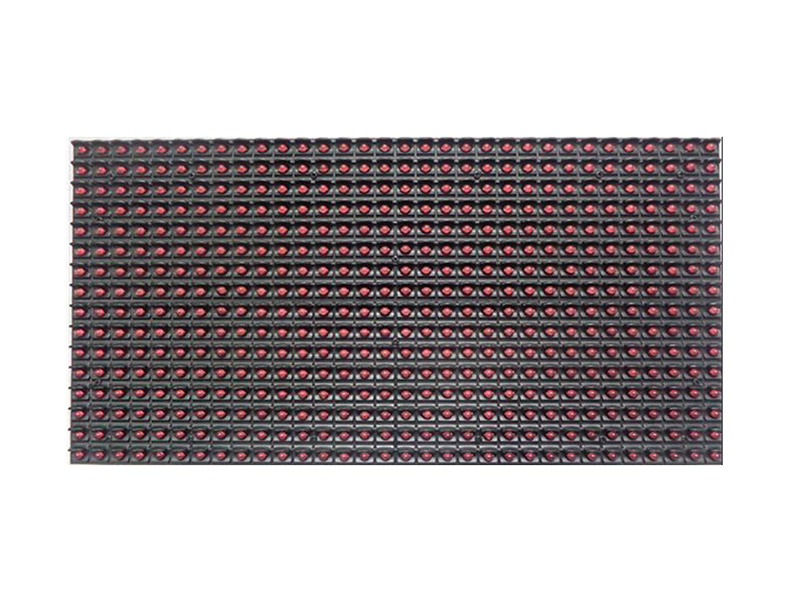

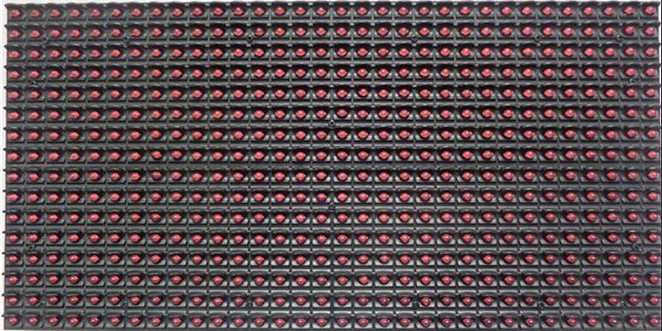

Pixel Pitch & Optimal Viewing Distance
Featuring a 10 mm pixel pitch, this module delivers clear and highly legible text, numbers, and simple graphics at medium to long viewing distances, making it a cost‑effective and reliable solution for outdoor messaging and public information displays.
Robust DIP LED Technology
Utilizes through‑hole Dual In‑line Package (DIP) LEDs that offer superior mechanical strength, stable soldering, and outstanding resistance to shock, vibration, and environmental stress—ensuring reliable operation under demanding outdoor conditions.
High-Brightness Single-Color Output
Available in standard colors such as red, green, yellow, blue, and white, each variant provides high‑intensity, uniform light output for excellent visibility even in direct sunlight or bright ambient lighting.
Outdoor Protection & Durability
Rated IP65 for full protection against dust and water ingress. Designed to operate reliably across a wide temperature range of –20 ℃ to +60 ℃, with UV‑resistant and corrosion‑resistant housing for long‑term outdoor use.

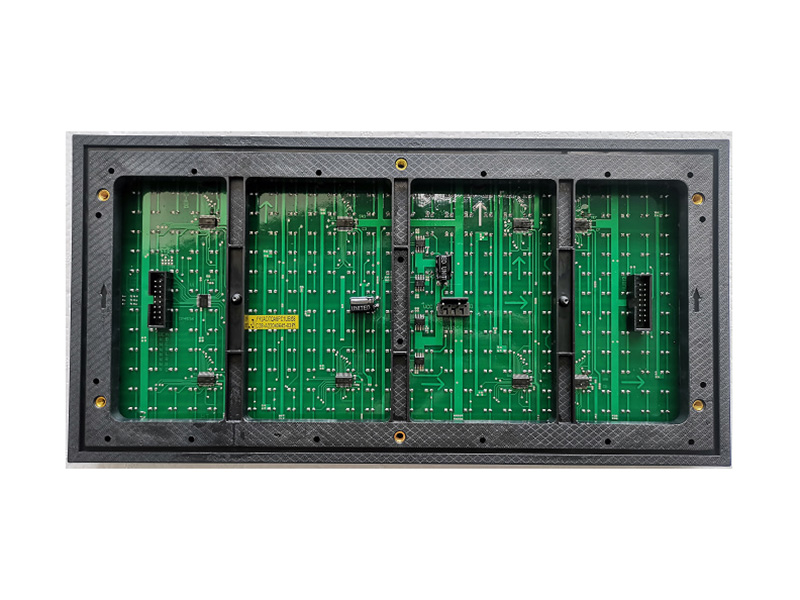

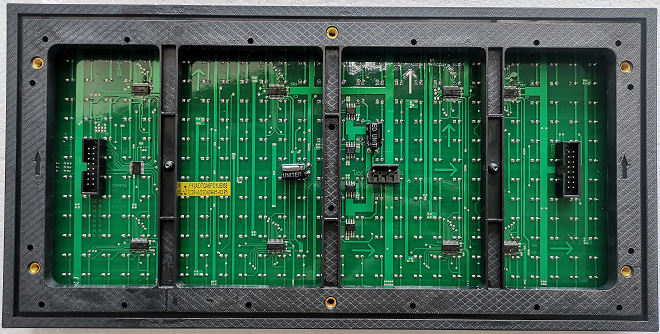

Modular & Maintenance‑Friendly Design
Standard module size and front‑service access allow for quick installation, easy scaling, and simplified maintenance. The single‑color configuration reduces system complexity and supports stable, low‑overhead operation.
Energy Efficient with Extended Lifespan
Engineered for low power consumption and a service life of up to 100,000 hours, offering a durable and economical display solution suitable for 24/7 continuous outdoor operation.
Typical Applications
Ideal for outdoor information boards, traffic guidance signs, parking availability systems, stadium scoreboards, industrial status displays, public transport announcements, and any application that demands high‑visibility, reliable, single‑color messaging in outdoor environments.
Parameter
| Parameter | DIP Monochrome |
| Item | P10 |
| Module size(mm) | 320x160 mm |
| Lamp | DIP 546 |
| Pixel Pitch(mm) | 10 mm |
| Dot | 32X16 |
| Color | RED/ GREEN/WHITE/ Blue/ Yellow |
| Scan | 1/4 |
| Pixel Density(Dots/㎡) | 10000 |
| Brightness(cd/㎡) | 2300-3500cd/㎡ |
| Weight(g) | 400g |
| Refresh Rate(Hz) | ≧80Hz |
| Warranty | 1 year |
72+ Hours Aging Tests
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability the indoor LED display modules and ensure the LED modules without broken lamps

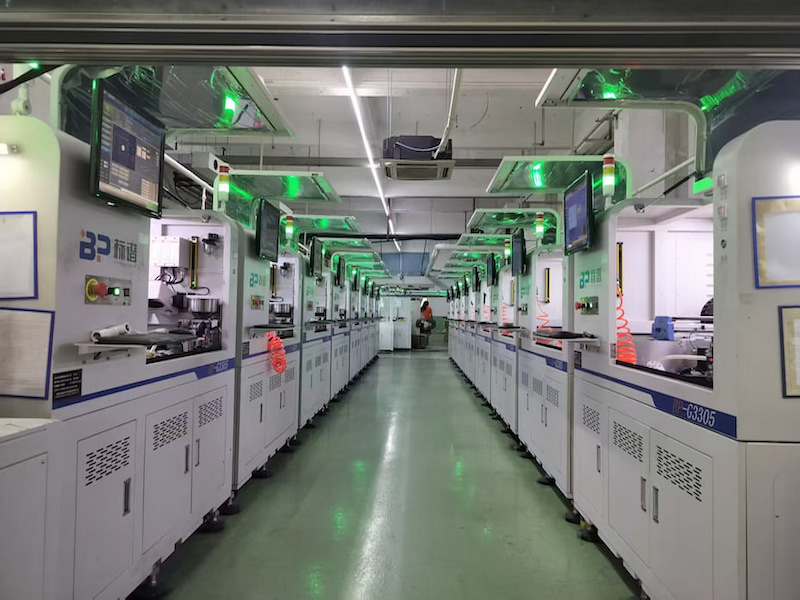

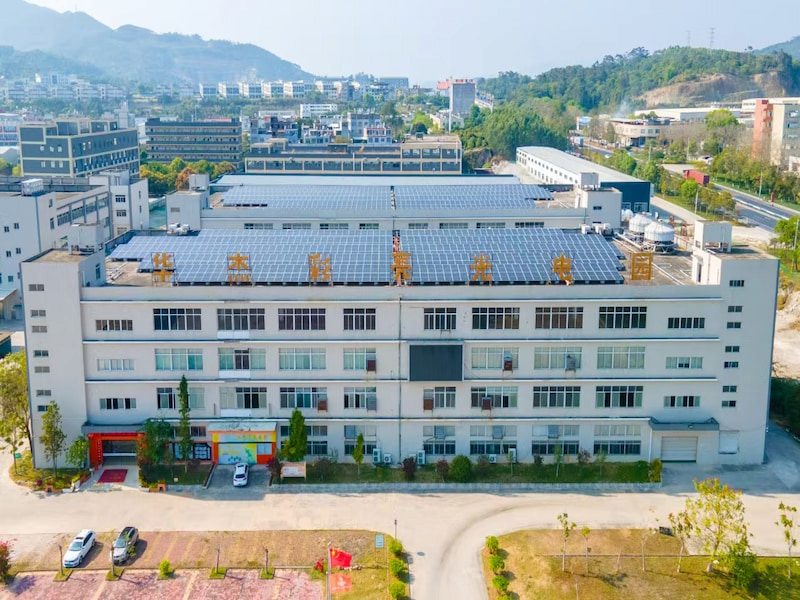

Self-owned Industrial Park
Fujian Hoozoe Optoelectronic Co.,ltd, which specialized in full range LED display module producing and solutions supply with 15 years, self-owned industrial park and automatic production lines help cost and production time saving.
Our Service
Supply OEM & ODM service; 7x24 online service, every year organize technical team global inspection to help to solve problems.
Advantages of Hoozoe DIP Monochrome LED Modules
1. Dual In-Line Package (DIP) LEDs
DIP modules utilize through-hole mounted LED lamps that offer robust physical structure, reliable solder connections, and enhanced protection against environmental stress, making them exceptionally durable for demanding applications.
2. Monochrome Display Clarity
Available in single colors such as red, green, amber, or white, these modules provide high-contrast, focused visibility ideal for displaying text, numeric data, symbols, and straightforward graphics without visual complexity.
3. High Brightness for Outdoor Use
Engineered with high-intensity LEDs that deliver superior luminance, ensuring clear readability even in direct sunlight or under bright ambient lighting conditions.
4. Rugged Outdoor Durability
Built with an IP65-rated waterproof and dustproof housing, capable of operating reliably across a wide temperature range (-20°C to +60°C), suitable for long-term outdoor installation in varying climates.
5. Extended Operational Lifespan
Designed for continuous operation with a typical lifespan of 50,000 to 100,000 hours, reducing maintenance frequency and providing long-term cost efficiency.
